Yamaha MY8-AEB
Bestellnr.
51272
8-CH Digital In/Out Card AES EBU, BNC

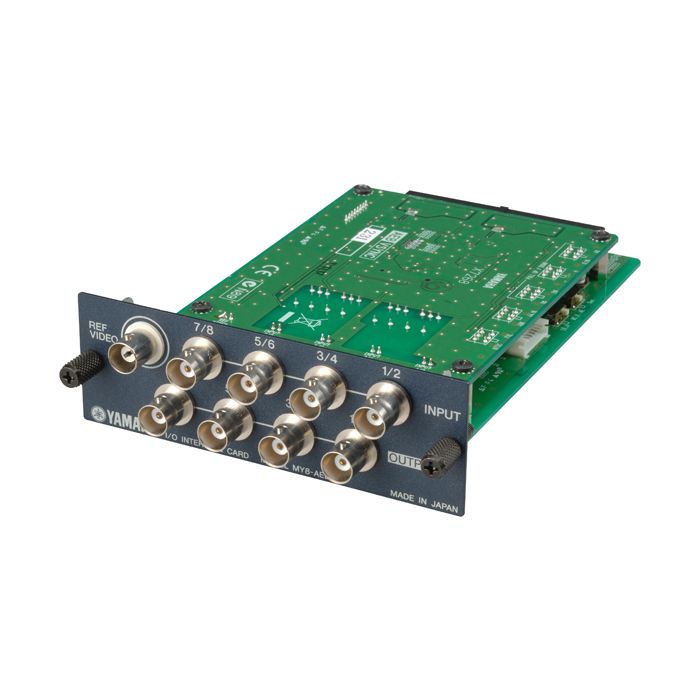

MY8-AEB I/O Interface Card
Mini-YGDAI Digital I/O Card for YAMAHA Digital Mixers and DME64N/24N
MY8-AEB I/O Interface Card
8 channel AES/EBU format I/O
(w/REF VIDEO Input)
Main Features
* 8-in/8-out AES-3id-1995 standard with 75Ohm BNC connectors.
* Reference video input connector.
* eXi-Clock synchronization maintenance function.
Specifications
* I/O Input x 8, Output x 8, REF VIDEO In x 1
* Connector BNC (Input x 4/Output x 4) based on AES-3id
* Fs 48 kHz, 44.1 kHz (Pull up/down 0.1%, 4%)
