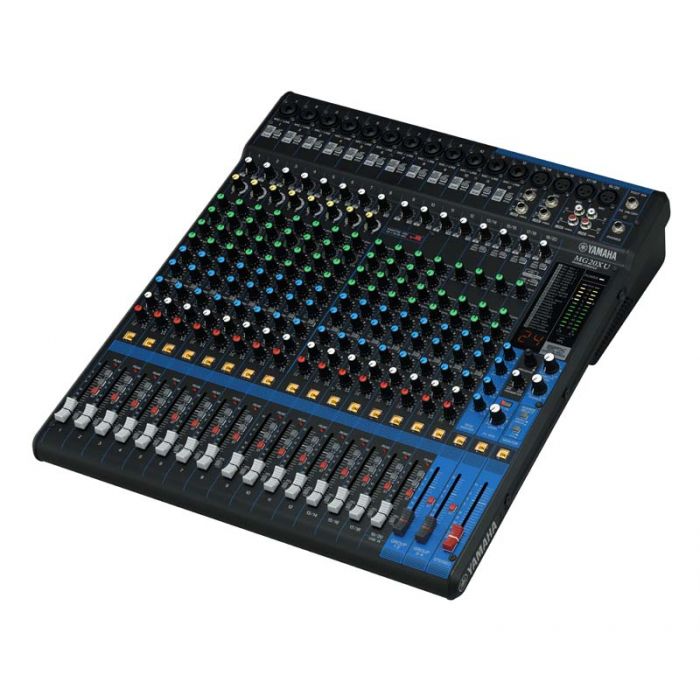

Yamaha MG20XU

Details:

20-Kanal Mischpult Konsole
Max. 16 Mikrofon- / 20 Line.Eingänge (12 mono + 4 stereo)
4 GROUP Busse + 1 Stereo Bus
4 AUX (inkl. FX)
“D-PRE” Mikrofonvorverstärker mit invertierter Darlington Schaltung
1-Knopf Kompressoren
SPX Prozessor mit 24 hochwertigen Effektprogrammen
USB Schnittstelle mit 2 Ein- / 2 Ausgängen (24-bit / 192kHz)
Kompatibel mit dem iPad (Version 2 oder höher) über das Apple iPad Camera Connection Kit / Lightning auf USB Kabel
Cubase AI DAW Software Download Version im Lieferumfang
PAD Schalter bei Mono-Eingängen
+48V Phantomspeisung
XLR Ausgänge
Internes Universal Netzteil
Rack Mount Kit im Lieferumfang
Metallgehäuse
444 mm x 130 mm x 500 mm
7.1kg


Technische Daten:

Outline:

Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)

I/O
Phantom power +48 V
Digital I/O USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit

Input Channels
Mono[MIC/LINE] 12
Mono/Stereo[MIC/LINE] 4

Output Channels
STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 4
GROUP OUT 4

Bus Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)

Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output
level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping

Level Meter 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

General specifications

Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)

Crosstalk -78 dB
Power requirements AC 100 – 240 V, 50 / 60 Hz
Power consumption 36 W

Dimensions
W 444 mm (17.5")
H 130 mm (5.1")
D 500mm (19.7")

Net weight 7.1kg (15.7 lbs.)
Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
Others Operating Temperature: 0 to +40˚C
