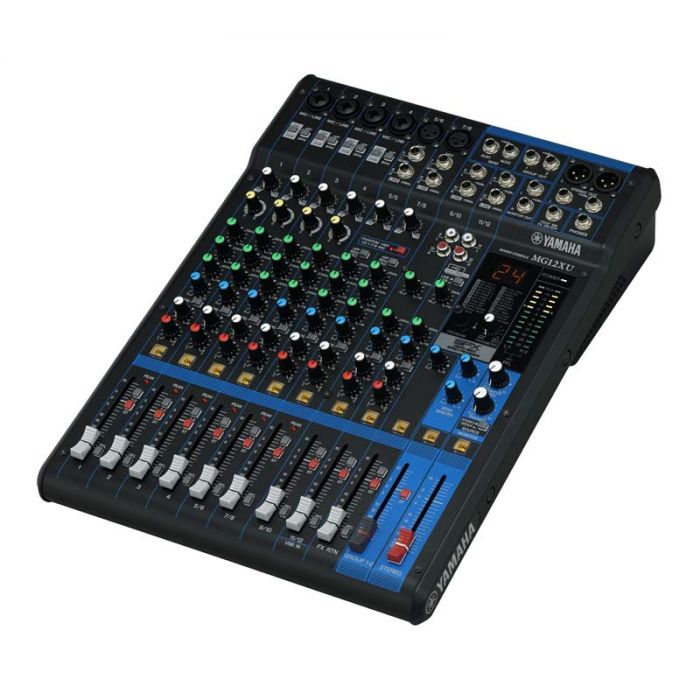

Yamaha MG12XU

Details:

12-Kanal Mischpult Konsole
Max. 6 Mikrofon- / 12 Line-Eingänge (4 mono + 4 stereo)
2 GROUP Busse+ 1 Stereo Bus
2 AUX (inkl. FX)
“D-PRE” Mikrofonvorverstärker mit invertierter Darlington Schaltung
1-Knopf Kompressoren
SPX Prozessor mit 24 hochwertigen Effektprogrammen
USB Schnittstelle mit 2 Ein- / 2 Ausgängen (24-bit / 192kHz)
Kompatibel mit dem iPad (Version 2 oder höher) über das Apple iPad Camera Connection Kit / Lightning auf USB Kabel
Cubase AI DAW Software Download Version im Lieferumfang
PAD Schalter bei Mono-Eingängen
+48V Phantomspeisung
XLR Ausgänge
Internes Universal Netzteil
Optionales Rack Mount Kit RK-MG12 verfügbar
Metallgehäuse
308 mm x 118 mm x 422 mm
4.2 kg


Technische Daten

Outline:

Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)

I/O
Phantom power +48 V
Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit

Input Channels
Mono[MIC/LINE] 4
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2

Output Channels
STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 2
GROUP OUT 2

Bus Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)

Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

General specifications:

Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)

Crosstalk -78 dB
Power requirements AC 100 – 240 V, 50 / 60 Hz
Power consumption 22 W

Dimensions
W 308 mm (9.6")
H 118 mm (2.8")
D 422 mm (11.6")
Net weight 4.2 kg (9.3 lbs.)
Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5
Others Operating Temperature: 0 to +40˚C
