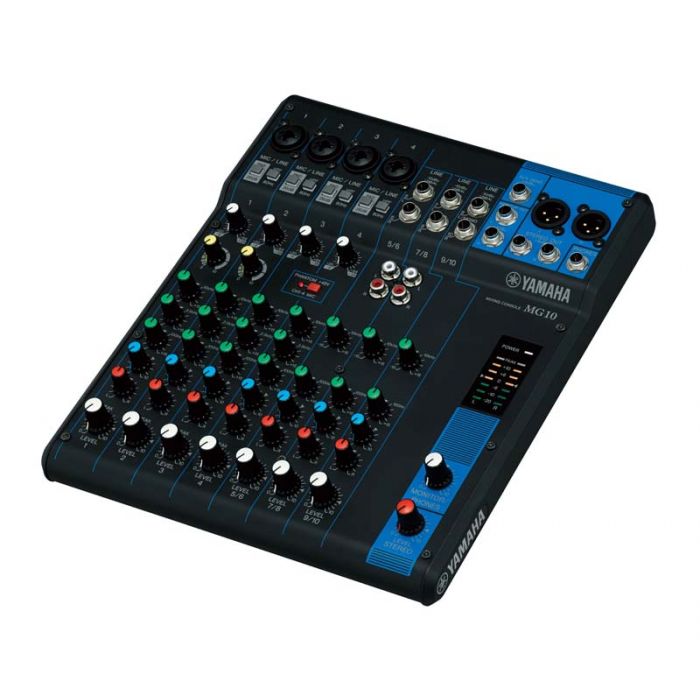

Yamaha MG10

Übersicht:

10-Kanal Mischpult Konsole
Max. 4 Mikrofon- / 10 Line-Eingänge (4 mono + 3 stereo)
1 Stereo Bus
1 AUX (incl. FX)
“D-PRE” Mikrofonvorverstärker mit invertierter Darlington Schaltung
1-Knopf Kompressoren
PAD Schalter bei Mono-Eingängen
+48V Phantomspeisung
XLR Symmetrische Ausgänge
Metallgehäuse
Maße (B×H×T): 244 mm x 71 mm x 294 mm
Gewicht: 1.9 kg

Technische Daten:

I/O Phantom power +48 V

Input Channels
Mono[MIC/LINE] 4
Stereo[LINE] 3

Output Channels

STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 1

Bus Stereo: 1, AUX[FX]: 1

Input Channel Function

PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
