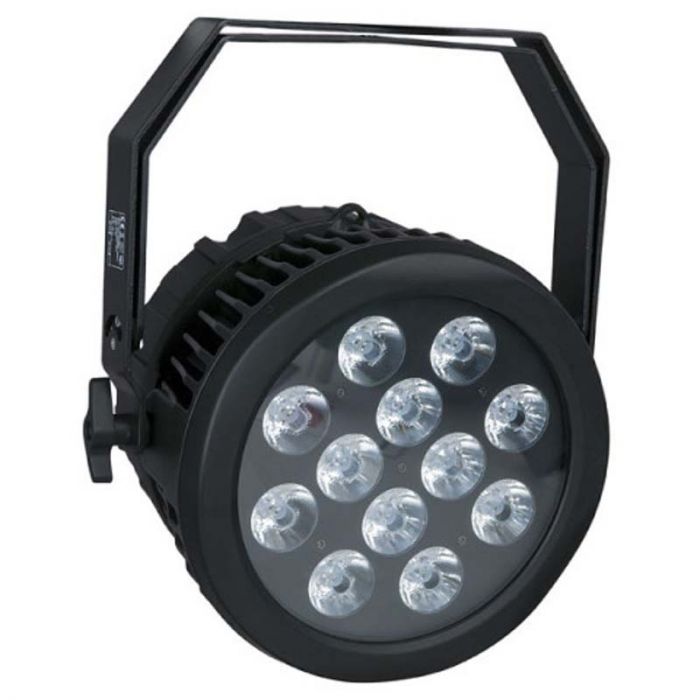

Showtec Helix 1800 Q4

The Helix 1800Q4 is an extreme bright and robust fixture with a tight 8⁰ beam offering an extreme punch. The Osram O-star RGBW LED are giving this fixture rich and deep colors and excellent color mixing. The Helix 1800Q4 is equipped with Neutrik Powercon TRUE in- and output as well 3 pole IP65 XLR connectors which makes the Helix1800Q4 to a versatile unit for in- and outdoor use. Due to the efficient design of the housing it has no fan and therefor it is also an extreme silent unit which can be used in theatres.
Specifications
Light Source
LED System: 12 x RGBW 4-in-1 10W LEDs
Drive Current: 500mA
Output@2m: 28000lux

Electrical
Power Supply: AC 100-240V 50/60 Hz
Power Consumption: 120W

Control
Control Mode: Auto/ build-in programs, Master/slave, DMX
DMX channels: 4, 6, 8ch

Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Beam Angle: 8°

Physical
Dimensions: 317 x 179 x 345 mm
Weight: 6,5 kg
Housing: Die-cast aluminium
Color: Black
Power Connectors: Powercon True1
Data Connectors: XLR-HD 3 pole
Cooling: Convection

Safety
Operation temperature: -10~40°C
IP-Rating: IP-65
