Sennheiser EW-DX 835-S SET (V3-4)

FEATURES EW-DX EM 2
• 2 channel half rack (9.5’)
• Up to 88 MHz switching bandwidth
• PoE IEEE 802.3af Class 3
• Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
• Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd
party modules
• Clear and easy focused user interface with OLED display
• Ethernet connectivity (IPv4 and IPv6)
• Secure AES 256 encryption
• External PSU 12V/1A
• All-metal housing

FEATURES EW-DX SKM-S
• 10mW RF power with up to 100m/328ft working range
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen even when device is not powered on
• Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
• Function buttons - control all the transmitter settings directly from handheld microphone
• Extended runtime with lithium-ion batteries - up to 12 hours operation time
• Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
• Mic input trim control
• Metal housing

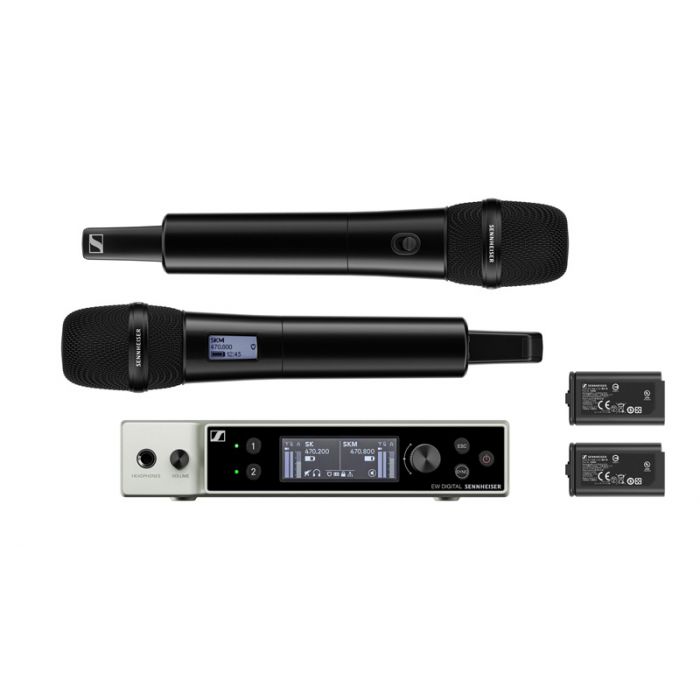

DELIVERY INCLUDES
• EW-DX EM 2 rack receiver
• 2 EW-DX SKM-S handheld transmitters
• 2 MMD 835 microphone modules
• 2 MZQ 1 microphone clamps
• 2 rod antennas
• power supply with country adapters
• GA 3 rackmount set
• 4 rubber feet
• 2 BA 70 rechargeable battery packs
• quick guide
• safety guide
• manufacturer declaration sheet
