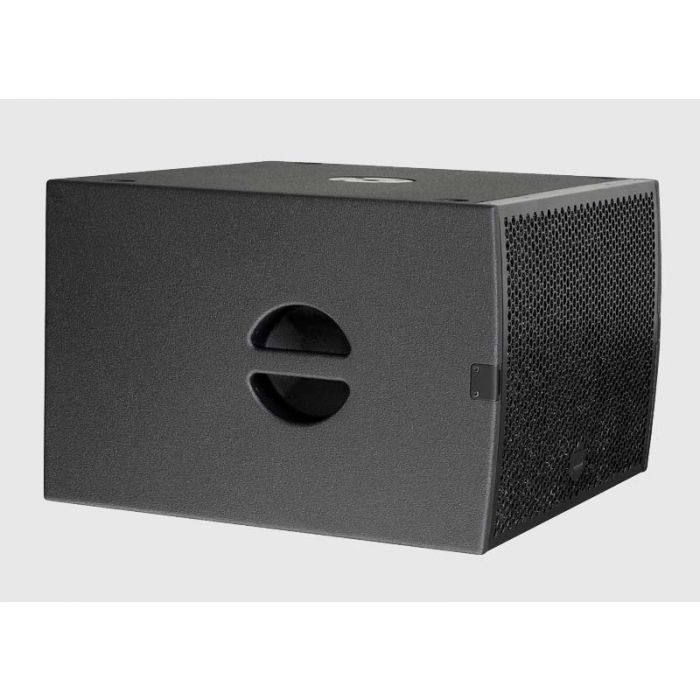

Seeburg G Sub 1501 dp+ (DPLM)

Speaker Components
15“ Nd
Description
Digitally Powered Bass Extension
Amp Power
1500 W AES (single Mode) / 110-230 V
2400 W AES (dual Mode) / 110-230 V
700 W AES / 4
Ω
- HiMid/Sub
Rated Current
5 A @ 230 V
SPL
Peak @ 1 m
135 dB
Max. Input Signal
25 dBu
DSP
HDLM FPGA Processing 32 bit floating point
AD / DA
24 bit / 96 kHz
Latency
0,8 ms (analog in to analog out)
Usable Range
- 6 dB
35 Hz - 100 / 140 Hz
Tuning Frequency
excursion
minimum
42 Hz
Connectors
Neutrik XLR in/out
Neutrik PowerCon in/out
2x Neutrik Speakon NL4MP out
Handles
2 x
Rigging / Fittings
M20 on top
Wheelboard fittings
Weight
29,5 kg
(+ 6,0 kg wheelboard)
Size
height x width x depth
40,0 x 60,0 x 60,0 cm
Order No.
00620/dp+
