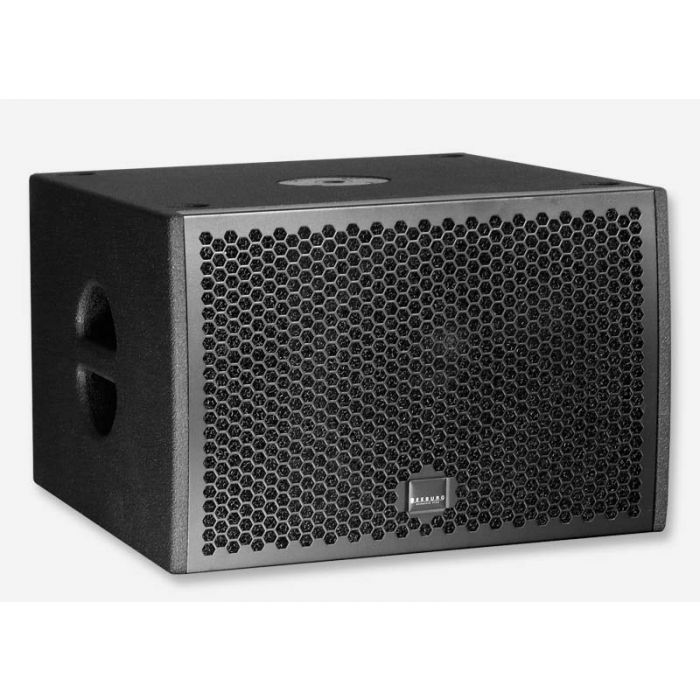

Seeburg G Sub 1201 dp+ (DPLM)

Speaker Components
12“ Nd
Description
Digitally Powered Bass Extension
Amp Power
500 W AES (single Mode) / 110-230 V
800 W AES (dual Mode) / 110-230 V
800 W AES / 4
Ω
- HiMid/Sub
Rated Current
2 A @ 230 V
SPL
Peak @ 1 m
131 dB
Max. Input Signal
25 dBu
DSP
HDLM FPGA Processing 32 bit floating point
AD / DA
24 bit / 96 kHz
Latency
0.8 ms (analog in to analog out)
Usable Range
-
6 dB
40 Hz - 120 / 140 Hz
Tuning Frequency
excursion
minimum
47 Hz
Connectors
Neutrik XLR in/out
Neutrik PowerCon in/out
2x Neutrik Speakon NL4MP out
Handles
2 x
Rigging / Fittings
M20 on top
Weight
18,0 kg
Size
height x width x depth
33,0 x 48,5 x 48,5 cm
Order No.
00610/dp+
