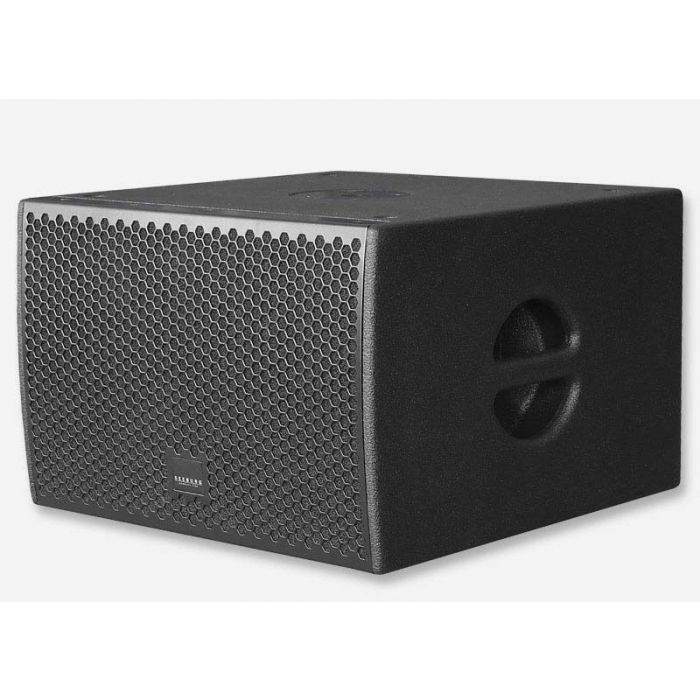

Seeburg G Sub 1001 dp+ (DPLM)

Speaker Components
10“
Description
Digitally Powered Bass Extension
Amp Power
250 W AES (single Mode)
/ 110-230 V
500 W AES (dual Mode)
/ 110-230 V
500 W AES / 4 Ω - HiMid/Sub
Rated Current
0,75 A @ 230 V
SPL
Peak @ 1 m
128 dB
Max. Input Signal
25 dBu
DSP
HDLM FPGA Processing 32 bit floating point
AD / DA
24 bit / 96 kHz
Latency
0,8 ms (analog in to analog out)
Usable Range
- 6 dB
44 Hz - 120 / 160 Hz
Tuning Frequency
excursion
minimum
53 Hz
Connectors
Neutrik XLR in/out
Neutrik PowerCon in/out
2x Neutrik Speakon NL4MP out
Handles
1 x
Rigging / Fittings
M20 on top
Weight
18,0 kg
Size
height x width x depth
28,0 x 43,0 x 43,0 cm
Order No.
00605/dp+
