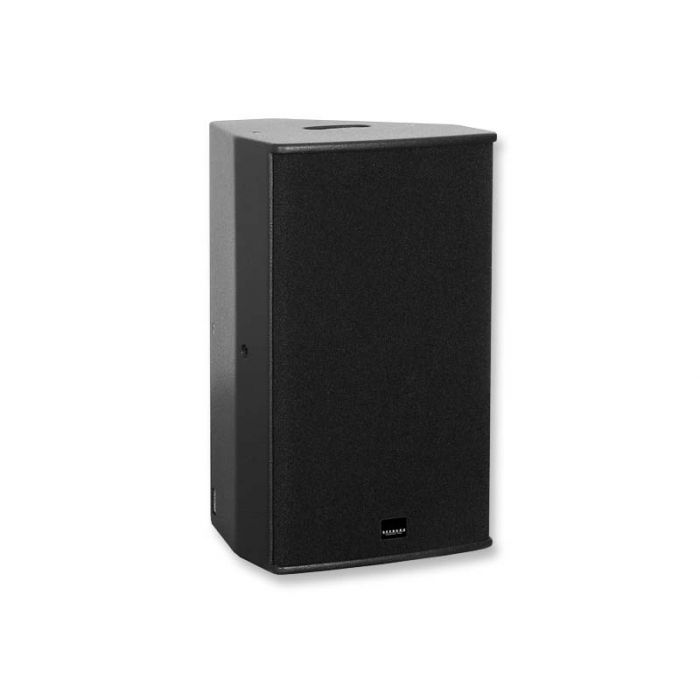

Seeburg A6dp (DPLM)

Speaker Components
12“ Nd / 1” Nd
Description
Multi-Purpose Sound System
Amp Power
2 x 500 W AES biamped / 110-230 V
Rated Current
0,55 A @ 230 V
SPL
Peak @ 1 m
128 dB
Max. Input Signal
25 dBu
DSP
HDLM FPGA Processing 32 bit floating point
AD / DA
24 bit / 96 kHz
Latency
0,8 ms (analog in to analog out)
Usable Range
- 6 dB
50 Hz - 20 kHz
Tuning Frequency
excursion
minimum
60 Hz
X - Overpoint
acoustical
Depends on preset
Coverage
horizontal / vertical
90° x 60° - rotatable
Max. Splay Angle
- - -
Connectors
Neutrik XLR in/out
Neutrik PowerCon in/out
Handles
1 x
Rigging / Fittings
2 x M10 / 7 x M8
35 mm pole mount
Weight
16,8 kg
Size
height x width x depth
60,6 x 36,0 x 34,0 cm
Order No.
00260/dp
