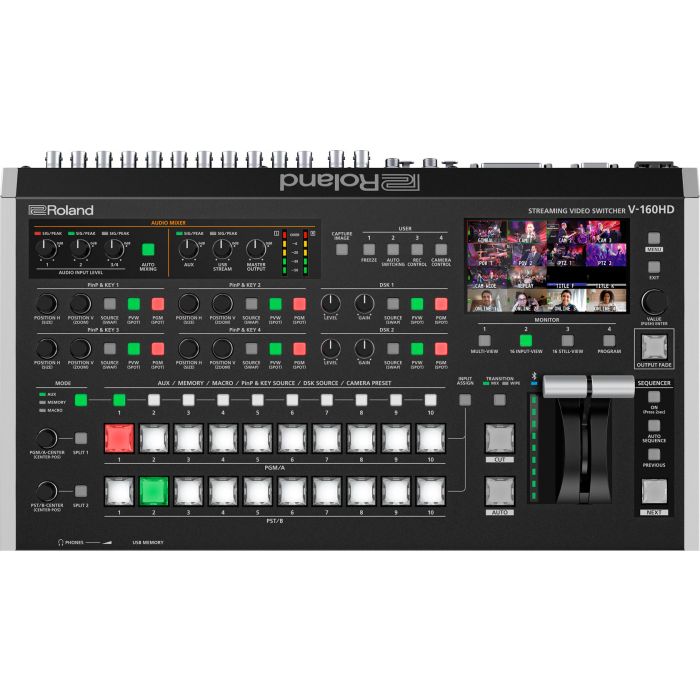

Roland V-160HD
Verfügbarkeit unbekannt
Streaming Video Switcher
Ausgestattet mit zahllosen professionellen Features für moderne Produktionsumgebungen setzt der V-160HD einen neuen Switching-Standard für hybride Events. Dank umfassenden SDI- und HDMI-Anschlüssen ermöglicht der V-160HD Live-Übertragungen in Full-HD bei simultanem Streaming via USB-C auf jede bekannte Web-Plattform. Darüber hinaus stehen eine Video-Effektengine mit acht Ebenen, ein digitaler Audio-Mixer mit 40 Kanälen, eine integrierte PTZ-Kamerasteuerung sowie wegweisende Cue- und Automationsfunktionen zur Verfügung, um selbst aufwendige Produktionen nahtlos durchführen zu können. All dies befindet sich in einem kompakten, portablen Gehäuse und lässt sich dank der Broadcast-typischen Bedienoberfläche problemlos von einem Anwender bedienen.
Video
Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
Number of Video Channels
16 channels
Video Input Formats
HDMI IN 1--4, SDI IN 1--8
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 OUTPUT FORMAT = 720p
*2 OUTPUT FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz, 60 Hz
*4 FRAME RATE = 50 Hz
HDMI IN 5--8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz, 60 Hz
*2 FRAME RATE = 50 Hz
Video Output Formats
HDMI OUT 1--2, SDI OUT 1--3:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *8
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *8
1080/59.94p *3, *4
1080/60p *3, *5
1080/29.97p *3, *6
1080/30p *3, *7
1080/50p *3, *8
1080/25p *3, *9
1080/23.98p *3, *10
1080/24p *3, *11
*1 OUTPUT FORMAT = 720p
*2 OUTPUT FORMAT = 1080i
*3 OUTPUT FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 60 Hz
*6 FRAME RATE = 29.97 Hz
*7 FRAME RATE = 30 Hz
*8 FRAME RATE = 50 Hz
*9 FRAME RATE = 25 Hz
*10 FRAME RATE = 23.98 Hz
*11 FRAME RATE = 24 Hz
HDMI OUT 3:
1080/59.94p *1
1080/60p *2
1080/29.97p *3
1080/30p *4
1080/50p *5
1080/25p *6
1080/23.98p *7
1080/24p *8
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 60 Hz
*3 FRAME RATE = 29.97 Hz
*4 FRAME RATE = 30 Hz
*5 FRAME RATE = 50 Hz
*6 FRAME RATE = 25 Hz
*7 FRAME RATE = 23.98 Hz
*8 FRAME RATE = 24 Hz
USB STREAM:
1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
1080/60p, 720/60p, 640 x 480/60p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/30p, 720/30p, 640 x 480/30p *4
1080/50p, 720/50p, 640 x 480/50p *5
1080/25p, 720/25p, 640 x 480/25p *6
1080/23.98p, 720/23.98p, 640 x 480/23.98p *7
1080/24p, 720/24p, 640 x 480/24p *8
*Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 FRAME RATE(USB OUT) = 59.94 Hz
*2 FRAME RATE(USB OUT) = 60 Hz
*3 FRAME RATE(USB OUT) = 29.97 Hz
*4 FRAME RATE(USB OUT) = 30 Hz
*5 FRAME RATE(USB OUT) = 50 Hz
*6 FRAME RATE(USB OUT) = 25 Hz
*7 FRAME RATE(USB OUT) = 23.98 Hz
*8 FRAME RATE(USB OUT) = 24 Hz
Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* It can be exported in the USB flash drive.
* PNG alpha channel supported.
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 4 (SQUARE, CIRCLE, DIAMOND), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key)
Others: Multi-View(3 types), Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
Audio
Audio Processing
Sample rate: 24 bits, 48 kHz
Number of Audio Channels
40 channels
Audio Formats
USB STREAM (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch
Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)
Audio Effects
Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 3-Band equalizer, Voice changer, Delay, Auto mixing
Master Effects: Reverb, 3-Band equalizer, Delay, Multi-band compressor, Limiter
Others: Output fade, Test tone output
Common Section
Other Functions
Preset Memory (30 types)
Macro Control (100 types)
Sequencer Control (1,000 steps)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control (Up to 16 units)
External Rec Control
Connectors
Video Input Connectors
HDMI IN 1--4: HDMI type A x 4
* HDCP Supported
HDMI IN 5--8: HDMI type A x 4
* HDCP Supported
* Multi-format Supported
SDI IN 1--8: BNC type x 8
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
Video Output Connectors
HDMI OUT 1--3: HDMI type A x 3
* HDCP Supported
SDI OUT 1--3: BNC type x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
USB STREAM: USB Type-C (TM)
Audio Input Connectors
Analog:
AUDIO IN 1--2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
AUDIO IN 3/L, 4/R: RCA phono type
Digital:
USB STREAM: USB Type-C (TM)
Bluetooth
HDMI IN 1--8: HDMI type A x 8
SDI IN 1--8: BNC type x 8
Audio Output Connectors
Analog:
AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone type
Digital:
USB STREAM: USB Type-C (TM)
HDMI OUT 1--3: HDMI type A x 3
SDI OUT 1--3: BNC type x 3
Other Connectors
USB MEMORY: USB A type (for USB flash drive, for remote control from USB Numeric Keypad)
USB STREAM: USB Type-C (TM) (for remote control from PC and iPad)
Bluetooth: for remote control from iPad
CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
LAN CONTROL: RJ45 100BASE-TX (for Remote Control)
Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level
Audio Input/Output Characteristics
Input Level
AUDIO IN 1, 2: -60--+4 dBu (Maximum: +24 dBu)
AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu)
Input Impedance
AUDIO IN 1, 2: 9.4 k ohms (ANALOG GAIN 0<24 dBu), 74.4 k ohms (ANALOG GAIN ≧ 24dBu)
AUDIO IN 3/L, 4/R: 47 k ohms
Output Level
AUDIO OUT (XLR): +4 dBu (Maximum: +24 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +10 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohms
Others
Bluetooth
Ver 4.2
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Display
4.3 inches TFT Color LCD: 480 x 272 dots
Power Supply
AC Adaptor
Current Draw
2.5 A
Power Consumption
55 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
437 (W) x 253 (D) x 103 (H) mm
17-1/4 (W) x 10 (D) x 4-1/16 (H) inches
480 (W) x 253 (D) x 103 (H) mm
18-15/16 (W) x 10 (D) x 4-1/16 (H) inches
* When rack mount angles are fitted.
Weight (excluding AC adaptor)
3.9 kg
8 lbs 10 oz
Accessories
Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Rack-mount angle x 2
Rack-mount angle mounting screw x 6
Options (sold separately)
Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H
* 0 dBu = 0.775 Vrms
* This product is a Class A digital device under FCC part 15.
All specifications and appearances are subject to change.
Marke | Roland |
---|
