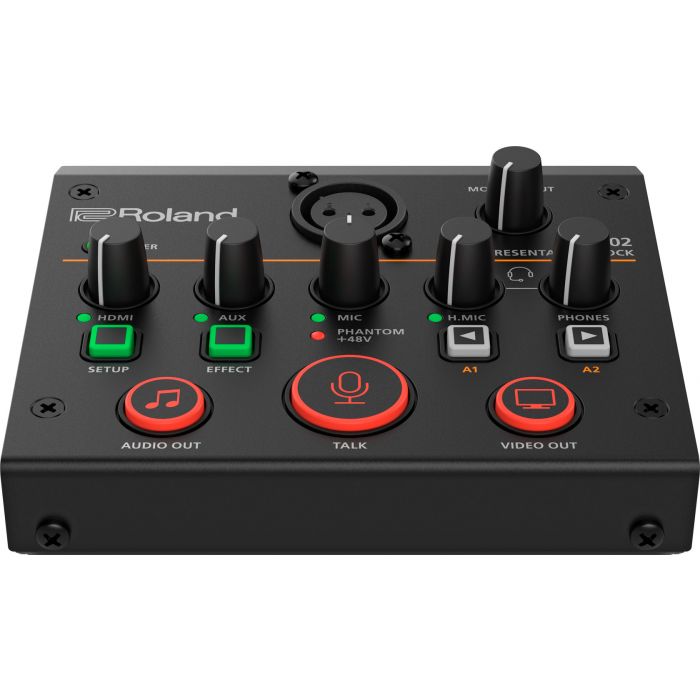

Roland UVC-02

Verfügbarkeit unbekannt

Bestellnr.
195347

Web Presentation Dock

Großartiges Bild und toller Sound für deine Video-Meetings und Präsentationen

Videostreaming gehört zu unserem Alltag – beruflich wie privat. Oft reichen die Webcam und das interne Mikrofon deines Computers nicht aus, um ein überzeugendes Bild von dir zu übermitteln. Mit dem UVC-02 Web-Präsentationsdock kannst du diese Schwachstelle beseitigen. Es bietet eine einfache und preisgünstige Möglichkeit, deine Video-Präsentationen um hochwertiges Audio-/Videoequipment und mehr Steuerungsoptionen zu erweitern.

Video
Input Connector
HDMI IN : HDMI type A
* HDCP not Supported
* Multi-format Supported

Input Formats
480/59.94p, 576/50p, 720/59.94p, 720/50p,
1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,
SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz,
WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz,
SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz,
SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz,
FHD (1920 x 1080) 60 Hz
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.

Output Connectors
USB STREAM : USB 3.0 Type-B

USB Video Output Format
YUY2 (Uncompressed), Motion JPEG (Compressed)

USB Video Output Resolution
1920 x 1080, 1280 x 720, 640 x 480
* Maximum frame rate is 60 fps.

Audio
Audio Processing
Sample Rate 48 kHz, 24 bits

Analog Connectors
MIC : XLR type (Balanced, Phantom power DC 48V, 14 mA Max)
HEADSET : Stereo miniature phone type (CTIA, PLUG-IN power)
AUX IN : Stereo miniature phone type
MONITOR OUT : Stereo miniature phone type

Digital Connectors
HDMI IN : HDMI Type A
USB STREAM : USB 3.0 Type-B

Nominal Input Level
MIC IN : -54 to -14 dBu (Maximum input level : +4 dBu)
HEADSET : -20 dBu (Maximum input level : -2 dBu)
AUX IN : -10 dBu (Maximum input level : +8 dBu)

Nominal Output Level
MONITOR OUT : -10 dBu
HEADSET : 9 mW + 9 mW (32 ohms load)

Input Impedance
MIC IN : 5.8 k ohms
AUX IN : 10 k ohms
HEADSET : 1 k ohms

Output Impedance
MONITOR OUT : 1 k ohms
HEADSET : 22 ohms

Digital Audio Format
HDMI IN : Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo
USB STREAM : Linear PCM, 48 kHz, 16 bits, Stereo

Audio Effects
Anti-Feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay

Audio File Player
Number of tracks : 2
Data Formats : WAV (Linear PCM, 48 kHz, 16 bits, stereo / mono)
Maximum Time : 5 seconds / track

Others
Other Functions
MIC Mute (TALK button)
Audio Mute (AUDIO OUT button)
Video Off (VIDEO OUT button)
Slideshow Control

Power Supply
Supplied from the computer via USB

Current Draw
900 mA (4.5 W)

Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

Dimensions
124 (W) x 117 (D) x 52 (H) mm
4-15/16 (W) x 4-5/8 (D) x 2-1/16 (H) inches

Weight (excluding cables)
460 g
1 lb 0.3 oz

Accessories
Leaflet "Read Me First"
USB 3.0 Cable
* 0 dBu = 0.775 Vrms

Mehr Informationen
Marke Roland
