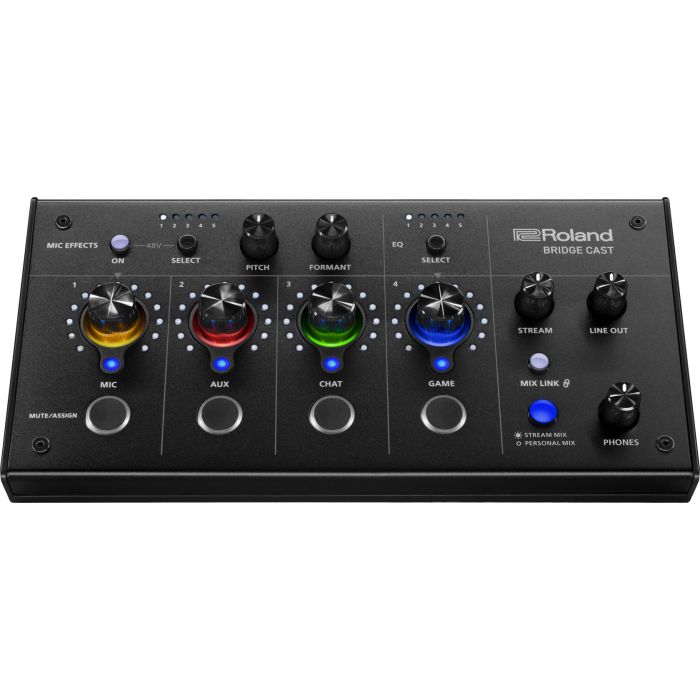

Roland BRIDGECAST

BRIDGE CAST ist eine All-In-One-Lösung für hochwertige Livestream-Audiosignale, die deinen Gaming-Sound auf eine neue Stufe heben. Der individuell anpassbare Desktop-Hub bietet gleich mehrere Geheimwaffen, darunter parallele Soundmischungen, Vocal-Transformer-Effekte, Musikwiedergabe, Soundeffekte sowie die Unterstützung von professionellen Mikrofonen und Kopfhörern. Auf diese Weise sorgt der BRIDGE CAST auch in der Hitze des Gefechts für epischen Sound, der deinem Gameplay in nichts nachsteht.

Specifications

Input Channel
MIC
AUX
CHAT (*1)
GAME (*1)
MUSIC (*1)
SYSTEM (*1)
USB (*2)

(*1) When the USB port connection setting is "PC"
(*2) When the USB port connection setting is "CONSOLE/MOBILE"

Output Channel
LINE OUT
PHONES
MIC (*3)
STREAM (*3)
PERSONAL (*3)
USB(*4)

(*3) When the USB port connection setting is "PC"
(*4) When the USB port connection setting is "CONSOLE/MOBILE"

Connectors
MIC jack: XLR type (Phantom power DC 48 V, 6 mA Max)
PHONES/HEADSET jack: Stereo miniature phone type (CTIA, PLUG-IN power)
AUX jack: Stereo miniature phone type (TRRS)
LINE OUT jack: Stereo miniature phone type (TRS)
USB port: USB Type-C (R)
USB DC 5V port: USB Type-C

Audio Mixing Bus
2 (STREAM MIX, PERSONAL MIX)

Sampling Frequency
44.1 kHz, 48 kHz, 96 kHz

Signal Processing
AD/DA: 24 bits
Internal Processing: 32-bit Floating point

Effects
MIC: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut
CHAT: De-esser, Compressor
GAME: Equalizer
STREAM: Delay

Audio File Player
Number of tracks: 2
Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono)
Maximum Time: 5 seconds/track

Input Level
MIC: -85.5--10.5 dBu (Maximum: +1.5 dBu)
HEADSET MIC: -58.5--20.5 dBu (Maximum: -8.5 dBu)
AUX: -10 dBu (Maximum: +2 dBu)

Input Impedance
MIC: 3.4 k ohms
HEADSET MIC: 1.3 k ohms
AUX: 10 k ohms

Output Level
LINE OUT: -4 dBu (Maximum: +8 dBu)
PHONES/HEADSET: -1 dBu (Maximum: +11 dBu)
PHONES/HEADSET: 78 mW + 78 mW (32 ohms)
PHONES/HEADSET: 35 mW + 35 mW (250 ohms)

Output Impedance
LINE OUT: 1 k ohm
PHONES/HEADSET: 10 ohms

Power
USB bus power
USB AC adaptor (commercially available)
* Use an USB AC adaptor that can supply 5 V, 1.0 A or more
.
Current Draw
5 V DC, 900 mA

Operating System
Microsoft Windows 10, Windows 11
Apple macOS 11 or later
Apple iOS 15 or later

* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the BRIDGE CAST, Roland cannot guarantee that a given computer can be used satisfactorily with the BRIDGE CAST based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.

Accessories
Leaflet "Read Me First"
USB 2.0 Type-C to Type-C Cable (2 m, 6.5 feet)
USB 2.0 Type-C to Type-A Cable (2 m, 6.5 feet)

Size and Weight

Width
222 mm
8.7 inches

Depth
110 mm
4.3 inches

Height
70 mm
2.8 inches

Weight
450 g
1 lb
