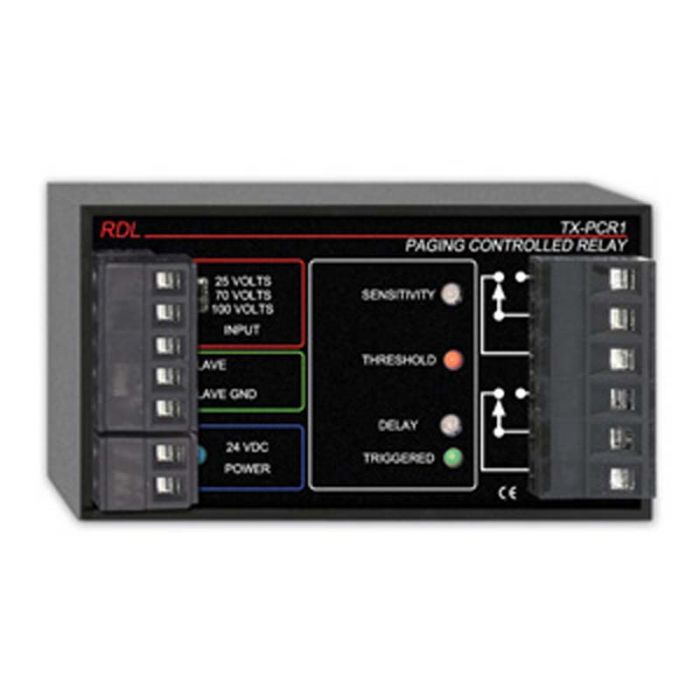

RDL TX-PCR1 Paging-Relay

sofort lieferbar

Bestellnr.
158260

Relais, durchsagesignalgesteuert

Features:

Switching Functions Controlled by Speaker-Level Source
Input Accepts Amplified Constant Voltage Signals
Switch-Selectable Input: 25 V, 70 V, 100 V
25 Volt Input Also Accepts 8 Ω Inputs up to 75 Watts
Transformer-Isolated Input
Front-Panel Trimmer Provides Sensitivity Adjustment
Signal Threshold LED Facilitates Sensitivity Adjustment
Front-Panel Trimmer Provides Release Delay Adjustment
LED Indicates when Module is Triggered
Release Delay Adjustable from 3 to 25 Seconds
Open-Collector Output Active when Module is Triggered
Switches on Paging or Any Other Amplified Audio Signal
8 Amp DPDT Relay Contacts for Switching Speaker Loads
Ideal for Muting or Switching Primary Speakers During Paging


The TX-PCR1 is the choice in many applications where switching needs to be controlled from a constant-voltage amplified audio source. The module will trigger on any program material, with paging sources being the most common. The TX-PCR1 includes both an open-collector SLAVE output to control other modules or equipment and a DPDT high power switching relay suited to switching speaker loads.

The amplified audio source is connected using a detachable terminal block. A front-panel switch is provided to select the source type: 25 V, 70 V or 100 V. The 25 V setting may be used for an 8 ohm, 75 Watt maximum, amplified source. Input sensitivity is adjusted on a single-turn trimmer. In the clockwise position, the SENSITIVITY trigger threshold is 30 dB below the switch-selected constant voltage. A red LED illuminates whenever the audio level exceeds the trigger threshold, facilitating the sensitivity adjustment.

The module is triggered when the audio exceeds the threshold and it remains triggered for a defined time duration after the audio falls below the threshold. This DELAY is adjustable from 3 to 25 seconds using a front-panel trimmer. Adjustment is simplified by a green LED that remains illuminated while the module is triggered. The SLAVE terminal may be used as either an input or output control terminal. When the module is triggered, the SLAVE terminal is internally pulled to ground through an open collector. If the TX-PCR1 SLAVE terminal is externally pulled to ground through a switch or the open-collector terminal of another RDL module, the relay will energize until the terminal is released.

A blue POWER LED illuminates when the TX-PCR1 is powered from an external 24 Vdc power supply.

Use the TX-PCR1 relay contacts to switch speaker lines or to control the logic inputs of other equipment with control inputs that may not be pulled up to 24 V. The TX-PCR1 is ideal to provide local speaker muting during an area page. The double pole contacts allow local speakers to be automatically connected to a paging line during a page and reconnected to the local amplifier when the page is completed. If additional speaker lines need to be switched, the SLAVE terminal may be used to control additional TX-PCR1 modules or RDL ST-LCR1H High Power Logic Controlled Relays.


Audio Input: Constant-voltage speaker line, transformer-coupled
Input Level: Switch-selectable 25 V, 70 V, 100 V
Detection Bandwidth: 120 Hz to 7.5 kHz (-3 dB)
Trigger Threshold: -40 dB to -15 dB (below 25 V, 70 V or 100 V), adjustable (single turn)
Release Delay: 3 seconds to 25 seconds, adjustable (single turn)
Control Output: Open collector @ 25 mA (SLAVE terminal)
Indicators (3): Power (blue LED), Threshold (red LED), Triggered (green LED)
Switching Contacts: 8 Amps maximum @ 250 Vac or 30 Vdc
Switching Power: 500 W (amplified audio signal;)
Power Requirement: 24 Vdc @ 60 mA*, Ground referenced *plus load current connected to SLAVE output
Package Type: Cardboard Box
Package Dimensions: 2 x 2 x 4 in.
Shipping Weight: 0.465 lbs.
WEEE weight: 0.41 lbs.
