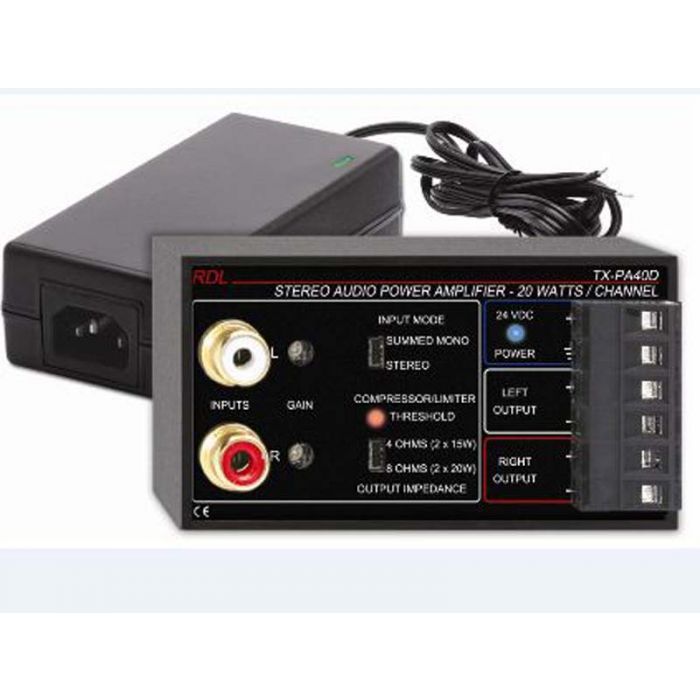

RDL TX-PA40DE Audio-Amplifier

•Stereo Audio Power Amplifier
•20 W RMS / Channel into 8Ω – 40 Watts Total
•15 W RMS / Channel into 4Ω – 30 Watts Total
•Left and Right Unbalanced Phono Jack Inputs
•Switch-Selectable Stereo or Mono Operation
•Compressor/Limiter Controls Clipping
•Studio Quality, Aurally Transparent Compressor/Limiter
•Compressor Produces Maximized Average Output Power
•Compression Enabled Using Input Level Adjustments
•LED to Indicate Audio Compression Threshold
•Outputs Drive 4 or 8 Ohm Speakers
•High-Efficiency Class D Operation
•Thermal and Short-Circuit Protection


The TX-PA40D is a utility power amplifier in the convenient line of Max-TX products. Max-TX modules are the large format member s of the RDL TX family, featuring the superior engineering and components common to RDL products. The durable adhesives provided with the TX-PA40D permit permanent or removable mounting. The TX-PA40D may be rack or surface mounted with optional TX series accessories. The TX-PA40D gives you the advantages of a quality, high efficiency stereo audio power amplifier with the added convenience of TXs!
