RDL TX-MVX Video-Switch

Verfügbarkeit unbekannt

Bestellnr.
158257

Video-Umschalter

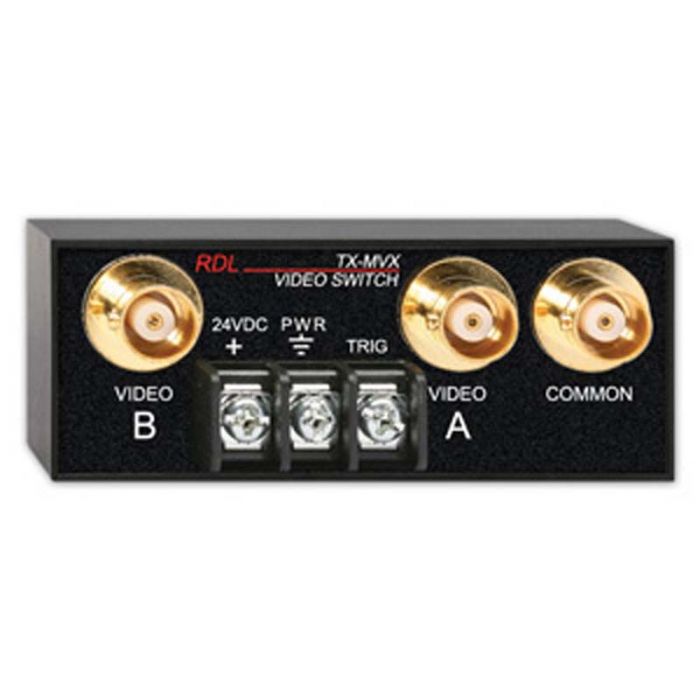

The TX-MVX is the choice in installations where either a manual switch or an open-collector must switch video signals. VIDEO A is normally connected to COMMON. When the TRIG terminal is pulled to ground, VIDEO B is connected to COMMON and VIDEO A is disconnected. The TX-MVX utilizes a high-quality RF relay allowing the module to either route a single video source to one of two destinations, or switch two video sources to a single video destination. The actual switch (or other module actuating the switch action) may be located remotely from the TX-MVX.

Many RDL modules feature an open-collector SLAVE control terminal. These terminals may be used to control the TX-MVX. Alternatively, relay contacts on other equipment may also be used to control the TX-MVX. For example when used with other RDL® modules, the TX-MVX could switch video:

using audio detection (ST-ACR) from an external audio source
using video detection (TX-VCR) from another video source
at a prescribed time during a power-up sequence (RU-SQ6A)
from logic signals (ST-LCR)
using wall-mounted remote controls (RT2, RC2-ST or RUC-4)

Use the TX-MVX individually in NTSC or PAL systems, or combine it with other RDL products and various mounting accessories as part of a complete audio/video system.


Input(s), Output(s): BNC, ground-referenced
TRIG Input Current: 2 mA
TRIG Input Threshold: 2 Vdc
Ambient Operating Environment: -10° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
Package Type: Cardboard Box
Package Dimensions: 2 x 2 x 4 in.
Shipping Weight: 0.3 lbs.
WEEE weight: 0.24 lbs.

Mehr Informationen
Herkunftsland Vereinigte Staaten von Amerika
Zolltarifnummer 85176200
Marke RDL
