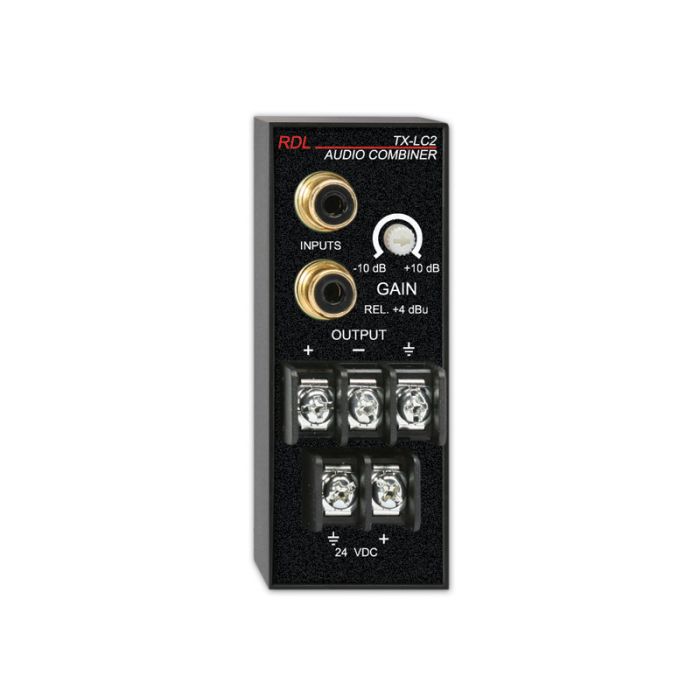

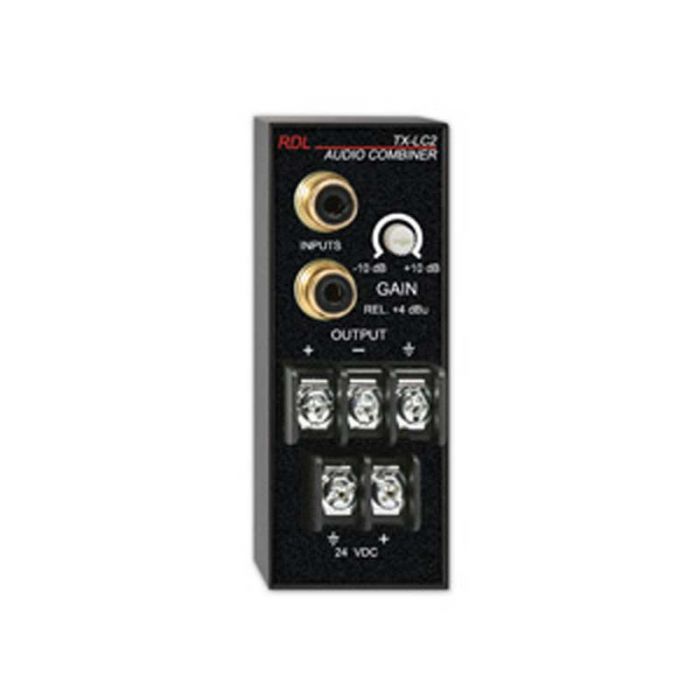

RDL TX-LC2 Line-Combiner

Features:

Mix 2 Unbalanced Audio Signals to Mono Balanced
Combine Stereo Into Mono with Balanced Output
Output Gain Trim
Isolation Between Inputs
Unbalanced to Balanced Conversion
High-Quality Audio


The TX-LC2 is the ideal choice in installations requiring the active, isolated mixing of two unbalanced line-level audio sources to feed a balanced (or unbalanced) audio line.

The input circuits are high-impedance, line-level (-10 dBV) and are isolated from each other. Therefore the modules may be used to bridge an unbalanced stereo source without affecting the stereo separation. The output from the TX-LC2 is a mono mix of the stereo signal. Gain of the combined signals is adjustable from -10 to +10 dB (rel. +4 dBu output).

The TX-LC2 may also be used to mix two separate sources into a single output. The mixing circuit in the module is an active summing amplifier.

The output driver provides a 150 Ω balanced source to drive high or low impedance, balanced or unbalanced lines. The TX-LC2 is operated from a 24 Vdc power supply, and with reduced headroom it may be operated from a 12 Vdc power supply.

The input connectors make connection of the TX-LC2 easy. The broad gain range makes the TX-LC2 ideally suited to any installation where a balanced mono signal is needed from a stereo unbalanced source, particularly low-output consumer products such as certain televisions.

Use the TX-LC2 individually, or combine it with other RDL modules and accessories as part of a complete audio/video system.


Inputs (2): -10 dBV nominal, -22 dBV minimum
Input Impedance: 10 kΩ
Noise: < -85dB below +4 dBu (-10 dBV input @ 12 dB gain)
THD+N: < 0.005%
Frequency Response: 10 Hz to 20 kHz (± 0.25 dB into bridging input)
25 Hz to 20 kHz (± 0.25 dB into 600 Ω)
Gain: ±10 dB (rel. +4 dBu balanced output, adjustable)
IMD: > 0.001%
Output: 150 Ω balanced, +4 dBu to drive low or high impedance, balanced or unbalanced lines
Headroom: > 18 dB
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
Dimensions: Height: 1.4 in. 3.6 cm; Length: 3.0 in. 7.6 cm; Width: 1.2 in 3.0 cm
Package Type: Cardboard Box
Package Dimensions: 2 x 2 x 4 in.
Shipping Weight: 0.255 lbs.
WEEE weight: 0.195 lbs.
