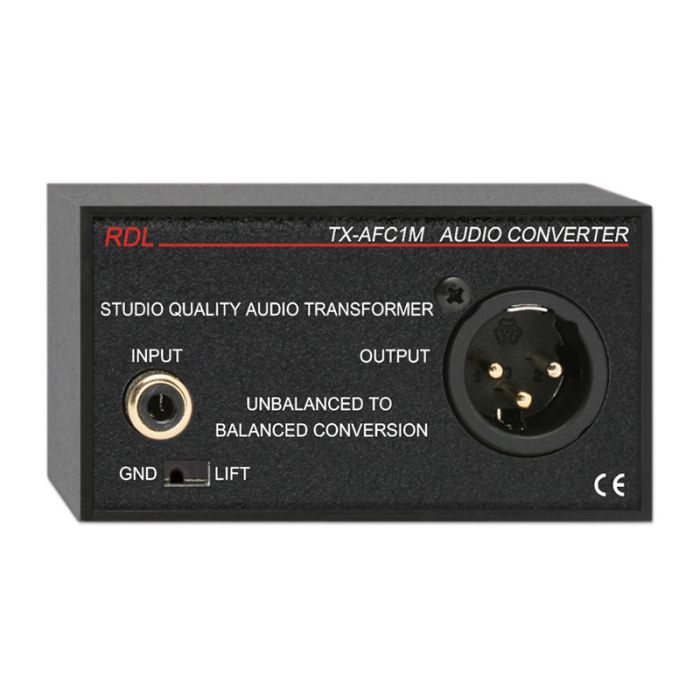

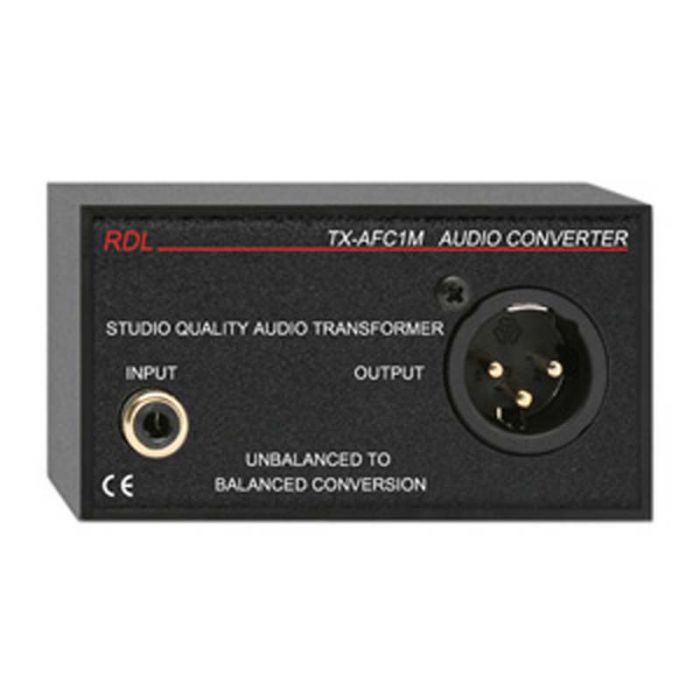

RDL TX-AFC1M Audio-Transformer

Features:

Studio Quality Bifilar Audio Transformer
Connectorized Audio Format Conversion
Galvanic Isolation with the Convenience of RDL TXs
Gold Contacts on Input and Output
Unbalanced to Balanced Conversion
Unity Gain
Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
THD: < 0.06% (50 Hz to 20 kHz, -10 dBV input)
0.0015% (Typ. 1 kHz, -10 dBV input)
Input: -10 dBV (+22 dBu max.), 10 kΩ Phono jack
Insertion Loss: 0.25 dB (20 Ω source; 10 kΩ load)
Insertion Loss: 0.25 dB (20 Ω source; 10 kΩ load)


Ambient Operating Environment: 0° C to 55° C
Package Type: Cardboard Box
Package Dimensions: 2 x 2 x 4 in.
Shipping Weight: 0.62 lbs.
WEEE weight: 0.565 lbs.
