RDL TX-A2 Audio-Converter

Features:

Unbalanced Audio Outputs from a Balanced Line
Balanced to Unbalanced Conversion
Mono Input to Stereo Output
+4 dBu Input Level to -10 dBV Output Level
Studio-Quality Transformer Isolation
Passive Converter with Output Jacks


The TX-A2 is the choice in installations requiring passive isolation and level attenuation between a professional balanced line-level mono source and consumer equipment unbalanced inputs.

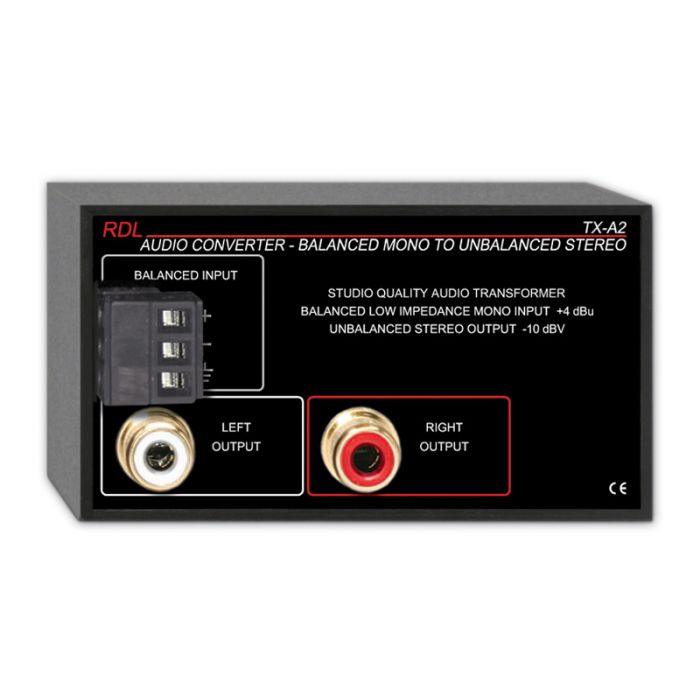

The TX-A2 is a complete unbalanced line-level audio output module. The front panel provides a detachable terminal block for connection of a balanced +4 dBu audio source. The input signal is coupled to two front-panel gold plated RCA jacks through a studio-quality isolation transformer. Each output is coupled through an attenuation network that produces a nominal -10 dBV level. Both output jacks may be used to feed two mono equipment inputs or one stereo input. A single output jack may be used for mono. Shielding is provided by the TX-A2's heavy duty aluminum enclosure.

Wherever professional format audio signals need to be converted to an unbalanced line level, the TX-A2 and TX-A2D are an ideal choice. Use them individually or in conjunction with other RDL products as part of a complete audio/video system.


Input connector 1: Detachable terminal block
Input level: +4 dBu nominal; +22 dBu max
Output connectors (2): Gold plated phono jacks
Output level: -10 dBV nominal
Frequency response (line level): 20 Hz to 20 kHz (±0.5 dB)
Total Harmonic Distortion: <0.05% (20 Hz to 20 kHz, +4 dBu input); <0.01% (1 kHz)
Dimensions: Height: 2.4 in. 6.1 cm; Length: 3.0 in. 7.6 cm; Width: 1.6 in. 4.04 cm
Package Type: Cardboard Box
Package Dimensions: 3.625 x 4.625 x 2.125 in.
Shipping Weight: 0.72 lbs.
WEEE weight: 0.57 lbs.
