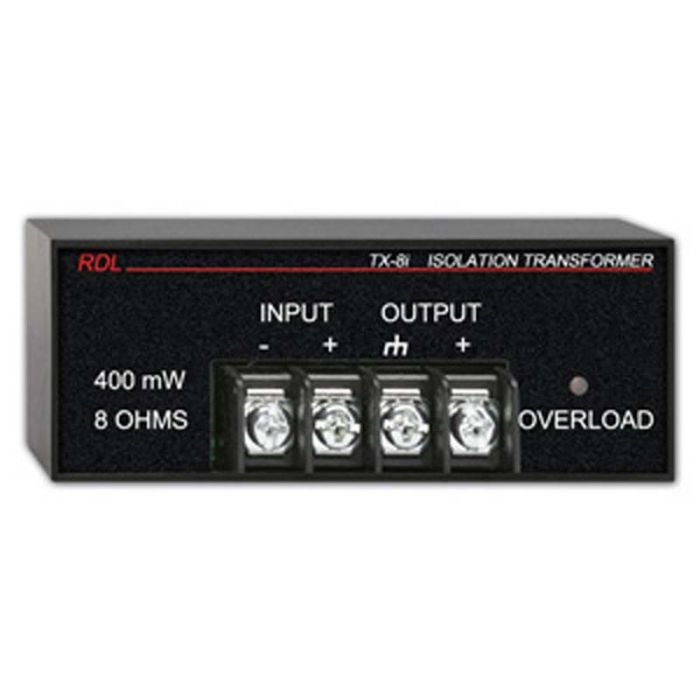

RDL TX-8i Isolation-Transformer

Features:

Isolates headphones from source equipment
Drives headphone impedance 8 Ω or greater
Galvanic Isolation with the Convenience of RDL® TXs™
Overload LED flashes when operating level is exceeded
THD+N: < 0.1% (1 kHz @ 50 mW)
Bandwidth: 100 Hz to 15 kHz
HI-POT: 1.5 KVAC, 1mA, 2 Sec.


Ambient Operating Environment: 0° C to 55° C
Package Type: Cardboard Box
Package Dimensions: 2 x 2 x 4 in.
Shipping Weight: 0.3 lbs.
WEEE weight: 0.245 lbs.
