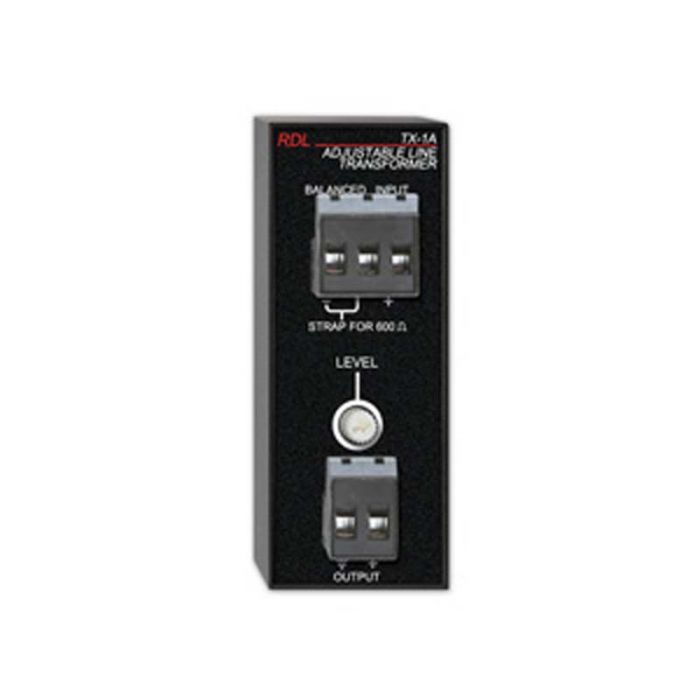

RDL TX-1A Line-Transformer

Features:

Provides transformer isolation between balanced line and unbalanced input
Level trimpot adjusts output 4 to 24 dB below input level
Input may be 10 kΩ bridging or 600 Ω terminated
Frequency response 20 Hz to 20 kHz (+/- 0.5 dB)
THD: < 0.05% (1 kHz)


Ambient Operating Environment: 0° C to 55° C
Package Type: Cardboard Box
Package Dimensions: 2 x 2 x 4 in.
Shipping Weight: 0.305 lbs.
WEEE weight: 0.25 lbs.
