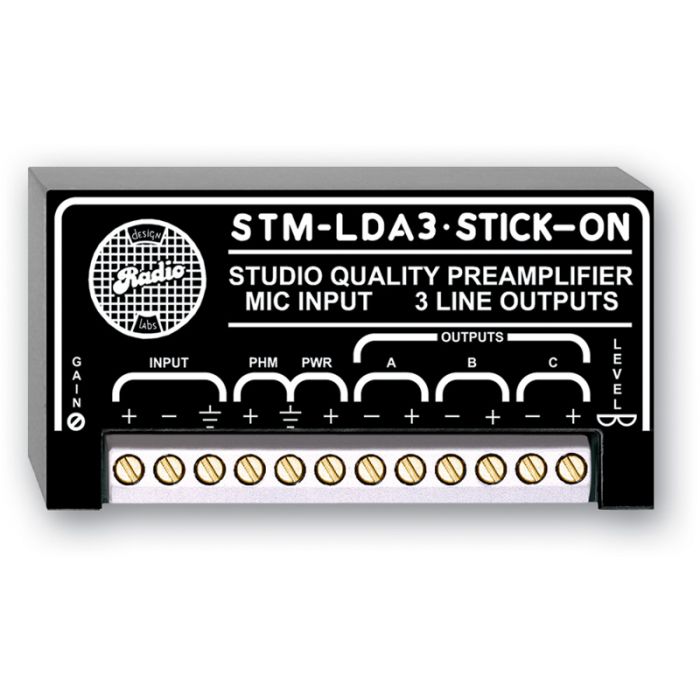

RDL STM-LDA3 Microphone-Preamp

Features:

Mikrofon-Vorverstärker in Studioqualität
Drei Linepegel-Ausgänge
Niedriges Rauschen und geringe Verzerrungen
Phantomspeisung möglich
Bis zu 60 dB Vestärkung


The STM-LDA3 is designed for use in quality commercial sound, broadcast and recording applications. The 1.2 kΩ balanced input accepts a wide variety of microphone input levels without loading professional low-impedance microphones. A multi-turn gain trimmer allows precise output level adjustment. The output signal is available on three separate balanced line level outputs. Each output may be connected balanced or unbalanced.

RDL's exclusive low-noise discrete preamplifier circuitry produces studio-quality low-noise performance in an economical preamplifier. Dynamic or condenser microphones may be used with the STM-LDA3. Standard 24V phantom is supplied to the input when the supply voltage is connected to the PHM terminal. Optimum operating level is set using RDL's unique dual-LED VU meter, located adjacent to the terminal block. A green LED illuminates at 15 dB below a +4 dBu output. The intensity of the green LED progresses from minimum to full intensity at +4 dBu. The adjacent red LED illuminates when the operating level exceeds +4. This makes the STM-LDA3 easy to set up without any external test equipment, and operating levels may be monitored at the module.


Input: 1.2 kΩ balanced
Outputs (3): +4 dBu, 150 Ω balanced
Gain: 40 to 60 dB (25 turn adjustable)
Frequency Response: 30 Hz to 20 kHz (± 0.2 dB)
THD+N: < 0.1%
IMD: < 0.1%
Noise:
< -70 dB (below +4 dBu @ 60 dB gain - wideband)
< -80 dB (below +4 dBu @ 50 dB gain - wideband)
Equivalent Input Noise: < -130 dB (gain + residual noise below +4 dBu)
Headroom: > 20 dB (above +4 dBu)
CMRR: > 60 dB (100 Hz to 5 kHz)
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 40 mA
Package Type: Cardboard Box
Package Dimensions: 2 x 2 x 4 in.
Shipping Weight: 0.2 lbs.
WEEE weight: 0.145 lbs.
