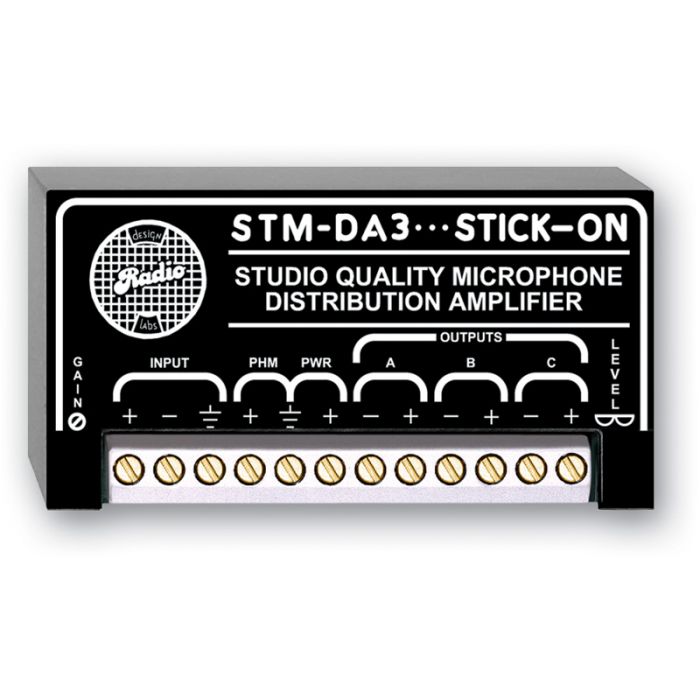

RDL STM-DA3 Distribution-Amplifier

Eigenschaften:

Ein Mikrofon auf 3 Mic. Eingänge verteilen
Sehr hohe Ausgangsisolation
Sehr geringer Rauschpegel und niedriger Klirrfaktor
Hervorragender Phasengang
Vielseitigkeit durch kompakte STICK-ON® Bauweise


The STM-DA3 is designed for use in quality commercial sound, broadcast and recording applications. The 1.2 kΩ balanced input accepts a wide variety of microphone input levels without loading professional low impedance microphones. A multi-turn trimmer is user adjustable for either gain or loss in order to match the facility standard microphone levels. Three balanced outputs provide nearly total isolation between the output lines. Unlike mic-splitting transformer systems, the STM-DA3 also provides audio isolation. In fact, the audio isolation is so good that a +4 dBu signal fed into one output is still below the noise floor on the adjacent output. Loading of one output including a direct short, has no effect on the other outputs.

The STM-DA3 is built on the electrical architecture of RDL's low-noise studio quality mic preamplifiers. Dynamic or condenser microphones may be used with the STM-DA3. Standard 24 V phantom is supplied to the input when the supply voltage is connected to the PHM terminal. Optimum operating level is set using RDL's unique Dual-LED VU meter, located adjacent to the terminal block. A green LED illuminates at 15 dB below optimum level. The intensity of the green LED progresses from minimum to full intensity over a 15 dB range. The adjacent red LED illuminates when the operating level exceeds the optimum level. This makes the STM-DA3 easy to set up without any external test equipment, and operating levels may be monitored at the module

For Mic to Line level distribution, use the RDL STM-LDA3.


Input: 1.2 kΩ balanced
Outputs (3): -45 dBu, 150 Ω balanced
Gain Range: 17 dB (Adjustable, 25-turn trimmer)
Control Fully CCW: Gain = -5 dB
Control Fully CW: Gain = 12 dB
Frequency Response: 30 Hz to 20 kHz (± 0.2 dB)
THD+N: < 0.1%
IMD: < 0.1%
Noise: < 80 dB (below -50 dBu output, -50 dBu input)
Headroom: > 20 dB (-50 dBu output, -45 dBu input)
CMRR: > 60 dB (100 Hz to 5 kHz)
Output Isolation:
> 135 dB (balanced audio)
> 150 dB (common mode)
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 40 mA
Package Type: Cardboard Box
Package Dimensions: 2 x 2 x 4 in.
Shipping Weight: 0.2 lbs.
WEEE weight: 0.145 lbs.
