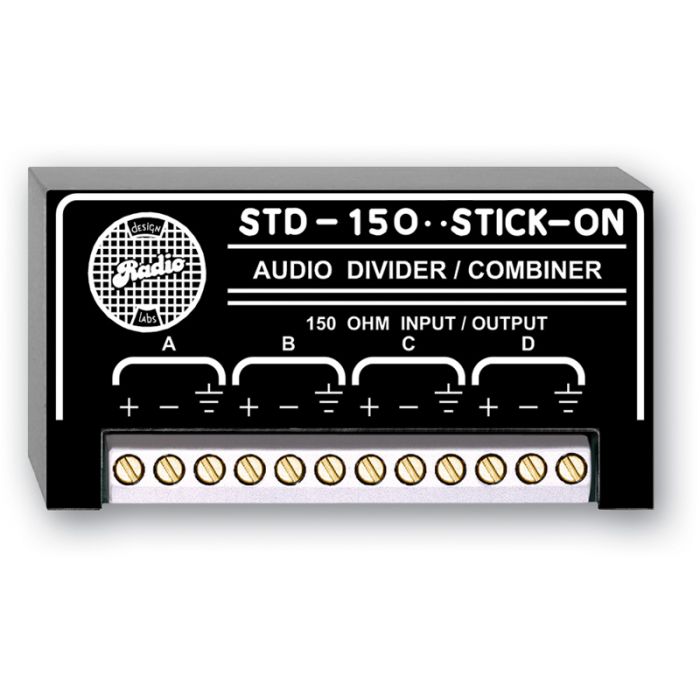

RDL STD-150 Audio Divider/Combiner

Features:

Audio Summierer / Splitter
Betrieb an 150 Ω
HF-Filter am Eingang
Verbinden und/oder aufteilen von Audiosignalen

Each STD module is a resistive branching network with RF filtering on each of the four channels. Any channel, A through D, may be either an input or an output. This permits combining stereo signals into mono inputs, splitting mono signals to multiple inputs, and even combining microphones with output shorting switches into a single amplifier input. The STD modules are available in 150 Ω, 600 Ω and 10 kΩ models. All inputs and outputs are balanced.


Circuit Type: Passive
Circuit Configuration: Balanced
Input/Output Impedance: 150 Ω
Number of Inputs / Outputs:
4 total; usable in any combination; split
1 in to 3 out; 2 in to 2 out; 3 in to 1 out
Insertion Loss: 3 dB
Isolation Between Channels: 3 dB (use RDL mixers or distribution amps for isolation)
Maximum Signal Input: +22 dBu
Power Requirement: Passive (not required)
Package Type: Cardboard Box
Package Dimensions: 2 x 2 x 4 in.
Shipping Weight: 0.185 lbs.
WEEE weight: 0.135 lbs.
