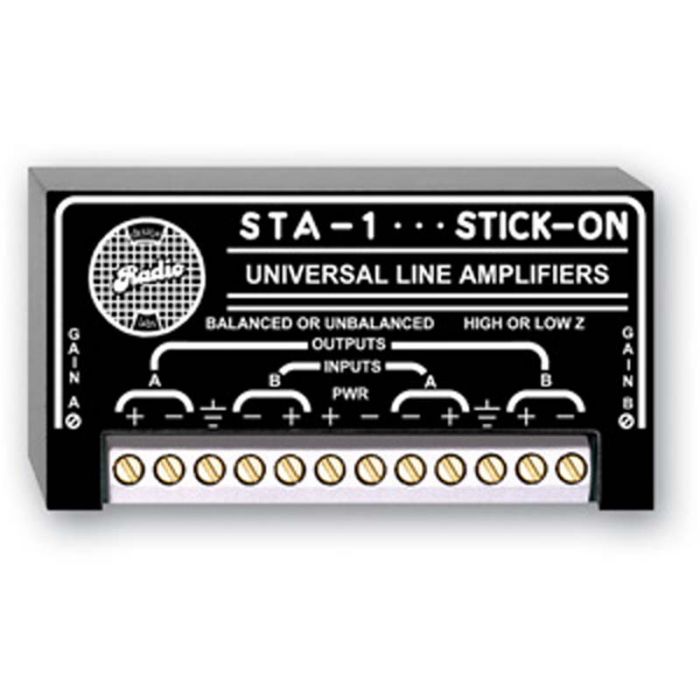

RDL STA-1 Universal Line-Amplifier

Features:

Bis zu 20 dB Verstärkung
Umwandlung von sym. in unsym. und umgekehrt
Impedanzwandlung von hoch- in niederohmig
Betreibt nieder- oder hochohmige Lasten
Brückenverstärker für Linepegel


The STA-1 is a dual-channel line-level preamplifier with bridging inputs, adjustable gain or loss, and low-impedance outputs. Each of the two identical circuits is both an electronic line transformer and a line amplifier. Hook up the STA-1 just like a pair of audio transformers with gain. True dc amplifiers produce unsurpassed audio clarity, high common-mode rejection, ultra-low distortion and low noise. The STA-1 is perfect for most line amplification, impedance or balanced/unbalanced conversion.

The STA-1 operates from floating or bipolar dc power. For installations where ground-referenced power is preferred, use the STA-2A Dual High Gain Line Amplifiers.


Amps per STA-1: 2 identical circuits (stereo or dual mono operation)
Gain: 20 dB (adjustable, separate controls for each channel)
Input Impedance: 10 kΩ bridging
Input Configuration: Balanced or unbalanced
Output Impedance: 200 Ω balanced (drives 600 Ω or 10 kΩ lines)
Output Configuration: Balanced or unbalanced
Frequency Response: dc to 25 kHz (± 0.25 dB)
THD+N: <0.03%
Output Level: +4 dBu
Headroom: 18 dB (at rated output of +4 dBu)
Noise: <-75 dB (referred to +4 dBu)
CMRR: -50 dB to (50 to 120 Hz)
Crosstalk: Better than 75 dB
Ambient Operating Environment: 0° C to 55° C
Power Requirement: FLOATING, 24 Vdc @ 50 mA
Package Type: Cardboard Box
Package Dimensions: 2 x 2 x 4 in.
Shipping Weight: 0.19 lbs.
WEEE weight: 0.14 lbs.
