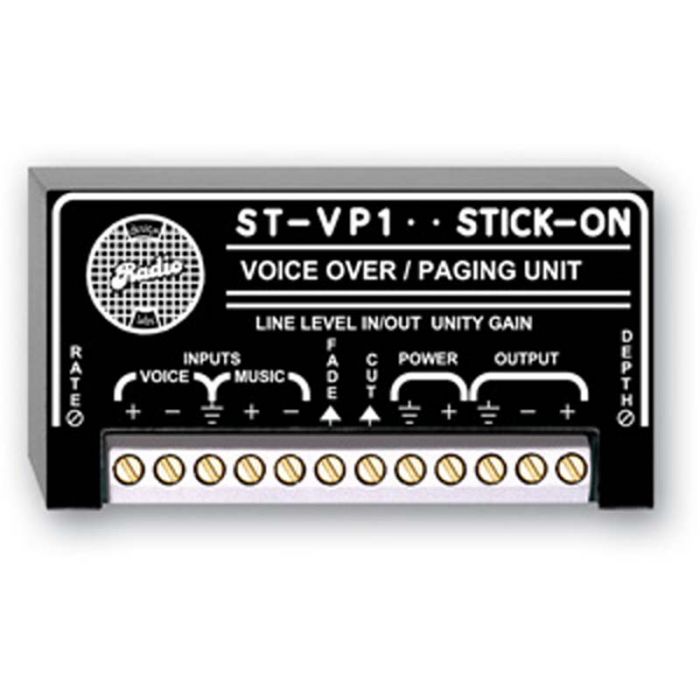

RDL ST-VP1 Voice/Paging-Module

Features:

Hochwertiges Übersprech-Mischen
Störungsfreie Vorrang-Funktion
Ein Anschluss für Vorrang oder Übersprechen
Wahl zwischen Ausblendung o. Direktumschaltung
Einstellbare Ausblendtiefe und Geschwindigkeit


The ST-VP1 is intended for voice-over paging with user adjusted and controlled FADE or CUT between two input sources. This unit is also perfect for voice-overs where precise and consistent fade levels are required. Automatic operation can be achieved when used in conjuction with RDL´s® ST-ACR products.


MUSIC SOURCE:
Frequency Response:
10 Hz to 20 kHz (± 0.25 dB)
THD+N:
< 0.01%
Attenuation when muted:
> 65 dB
VOICE SOURCE:
Frequency Response:
30 Hz to 20 kHz (± 0.25 dB)
THD+N:
< 0.01%
Attenuation when muted:
> 80 dB
COMMON:
Input Level:
+4 dBu Balanced (may be connected unbalanced)
Output Level:
+4 dBu balanced (may be connected unbalanced)
Gain (either input):
Unity (balanced input/output)
Noise:
< -85 dB (below +4 dBu output)
Headroom:
> 18 dB (above +4 dBu)
Fade Rate:
Adj. 0.3 to 1.3 seconds (for 20 dB fade) Adj. 0.2 to 1.0 seconds (for 12 dB fade)
Fade Depth (music input):
Adj. 3 dB to 40 dB
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
GROUND-REFERENCED 24 Vdc @ 45 mA
Package Type:
Cardboard Box
Package Dimensions:
2 x 2 x 4 in.
Shipping Weight:
0.195 lbs.
WEEE weight:
0.145 lbs.
