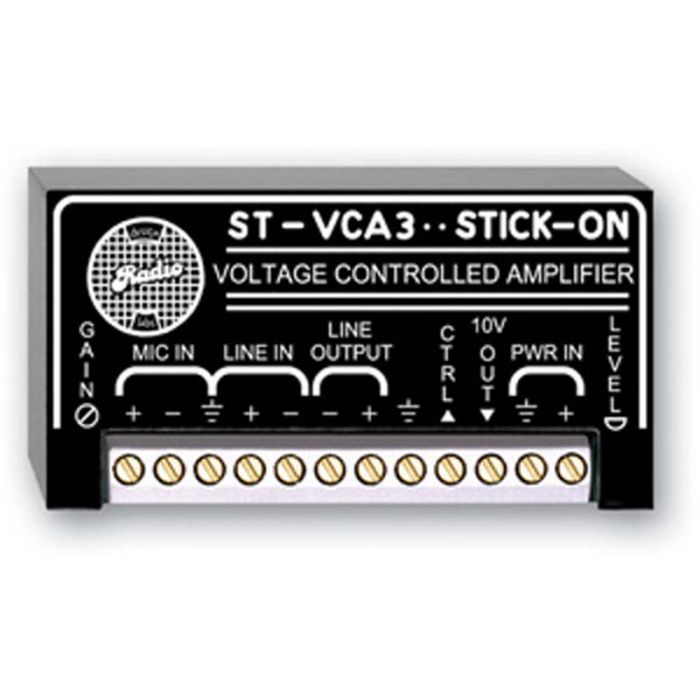

RDL ST-VCA3 VCA-Amplifier

Features:

VCA mit Linepegel-Ausgang
Pegelregelung durch Gleichspannung
Regelung per Doppelleiter plus Schirm oder 3 adriger Leitung
Mikrofon oder Linepegel Eingang

The ST-VCA3 is used in applications requiring smooth audio level control from a remote control panel, potentiometer or dc voltage (0 to 10 V). Installation in series with the audio input of a power amplifier allows remote control of that amplifier's level. For installations where it is preferred to keep the audio localized in the rack, audio controls are extended outside the rack from the ST-VCA3. Many installations benefit from avoiding long-term potentiometer wear from audio running through the potentiometer. An ST-VCA3 with external dc control provides virtual immunity from scratchy audio. Audio/video system control units often provide 0 to 10 Vdc control outputs that can directly control audio levels using an ST-VCA3. The ST-VCA3 is primarily intended for line-level attenuation; a high quality utility microphone preamplifier is included in the module. If remote control of a microphone preamplifier is desired, such as a wall mounted level control for a microphone jack, the ST-VCA3 may serve as a remote controlled microphone preamplifier.


Inputs (2):
Mic: 200 Ω balanced; 5 kΩ unbalanced
Line: 30 kΩ bal. bridging or unbalanced
Input Levels (for +4 dBu output):
Mic: −44 dBu to −60 dBu (150 Ω source)
Line: -18 dBu (-20 dBV) to +4 dBu
Output Signal (normal rated):
+4 dBu, 150 Ω balanced
Headroom:
18 dB
THD+N:
Mic: < 0.05%; Line: <0.025% (unity gain);
0.025% typical at 15 dB attenuation
Frequency Response:
Mic: 30 Hz to 20 kHz (±1 dB)
Line: 10 Hz to 20 kHz (±0.1 dB)
Noise:
Mic: < -71 dB below +4 dBu output (150 Ω source; 50 dB gain)
Line: <-78 dB below +4 dBu output (maximum gain)
CMRR:
Mic: > 60 dB; Line: > 60 dB, (50 Hz to 120 Hz)
Control Input:
0 to 10 Vdc or 0 to 10 kΩ Linear
Attenuation Range:
0 to 90 dB (>90 dB at 0 Vdc control)
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 50 mA
Dimensions:
Height: 0.7 in. (1.7 cm), Width: 3 in. (7.6 cm), Depth: 1.6 in. (3.9 cm)
Package Type:
Cardboard Box
Package Dimensions:
2 x 2 x 4 in.
Shipping Weight:
0.2 lbs.
WEEE weight:
0.145 lbs.
