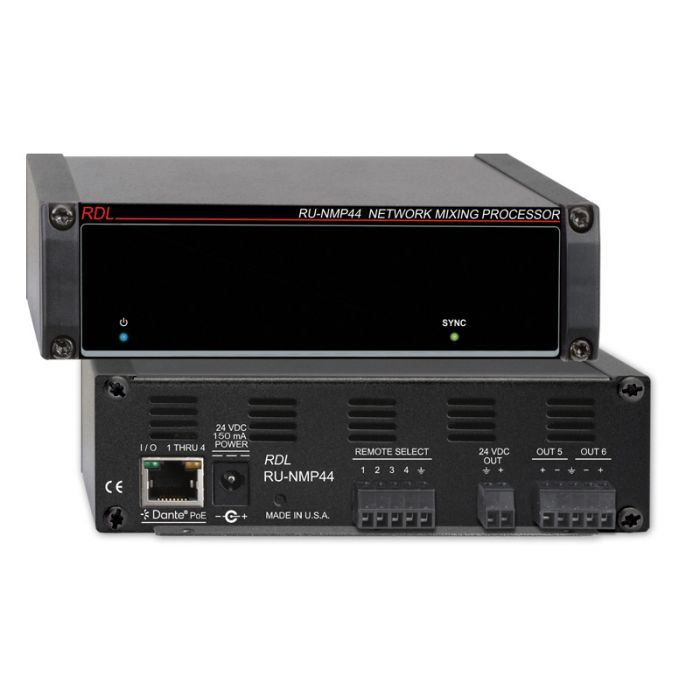

RDL RU-NMP44 Network Mixing Processor

- Six Networked 4 x 1 Virtual Audio Mixers Dante / AES67
- Four Dante Network Inputs Feed Each Mixer
- Four Mixer Outputs Feed Dante Network Channels
- Two Mixer Outputs Feed Balanced Line-Level Outputs
- A Pair of Mixers may be Configured for Stereo Audio
- Module is Configured and Adjusted Using Network Control Software
- Compatible with RDL Networked Remote Controls
- Provides Level Adjustment in 1 dB Steps for Each Input of Each Mixer
- Provides Level Adjustment in 1 dB Steps for the Output of Each Mixer
- Automatic (VOX) Priority Ducking Assignable on Each Virtual Mixer
- Priority May be assigned to One of the Four Received Network Channels
- Selectable High Pass Filters for the Priority Input
- Adjustable Ducking Threshold, Attenuation Level and Recovery Delay
- Provides Four Stored Preset Configurations for Routing, Mixing and Levels
- Presets Activated by Network Commands, at Power-Up, or Using RDL RC4M Remote Control
- LED Indicators for Power and Network Sync
- Operation from PoE Power (Class 0, IEEE 802.3af) or external 24 Vdc

Network Connector: RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol: Dante or AES67
Digital Audio Sources (4): Dante or AES67
Transmission Rate: 100 Mbps
Sample Rates Supported: 44.1 kHz, 48 kHz (default)
Bit Depth Supported: 24 bits
Digital Audio Outputs (4): One output channel per virtual mixer (1 through 4)
Outputs (2): +4 dBu (nominal, -20 dBFS), 150 Ohms
Output Connection: Detachable terminal block
Frequency Response: 20 Hz to 20 kHz (± 0.25 dB)
THD+N: < 0.01%
Noise below +4 dBu: < 85 dB
Crosstalk: Below noise floor (20 Hz to 20 kHz, -20 dBFS)
Headroom above +4 dBu: > 18 dB
Note: All 6 virtual mixers use the same four network audio sources.
Note: Each mixer output is connected to one RU-NMP44 output.
Note: A mixer that is using only one input acts as a virtual VCA.
Note: A mixer that is using one standard and one priority input acts as a paging / ducking module.
Inputs (Up to 4): Dante or AES67
Input Attenuation (Mix level): 0 to -64, 1 dB steps (-64 = OFF)
Mixed Output Attenuation: 0 to -64, 1 dB steps (-64 = OFF)
Mixer Output (Mixer 1 thru 4): Dante or AES67
Mixer Output (Mixer 5 and 6): +4 dBu, Balanced Analog
Priority Input: Dante or AES67 Input 1, 2, 3 or 4
Priority Input Filters: Programmable: 36 dB/Octave; High-Pass 100 Hz, 125 Hz, 200 Hz and 250 Hz
Priority Detector Threshold: -25 dB (default); adjustable -15 to -40 dB (rel -20 dBFS)
Ducking Attenuation: 10 to 64 dB, 1 dB steps (64 = OFF)
Recovery Delay: 2 seconds (default); adjustable 0.5 to 10 seconds, 0.5 second steps
Recovery Ramp: Adjustable 1 second to 10 seconds
Number of Presets: 4
Stored Settings per Preset: All settings for all mixers, routing of network inputs and outputs
Preset Activation: Programmable at power-up (1 preset), momentary contact or open collector (supporting 24V pullup), RDL D*-RC4M Remote Controls (up to 3)
Preset Connections: Detachable terminal block
Indicators (2): Power, Sync
Ambient Operating Environment: 0° C to 40° C
Power Requirement: 24 Vdc @ 150 mA
Dimensions: Height: 1.64 in. (4.17 cm); Width: 5.74 in. (14.58 cm); Depth: 3.96 in. (10.06 cm)
Package Type: Cardboard Box
Package Dimensions: 6.7 x 6.25 x 2.75 in
Shipping Weight: 1.358 lbs.
WEEE weight: 1.1 lbs.
Tariff code: 8543.70.9100
