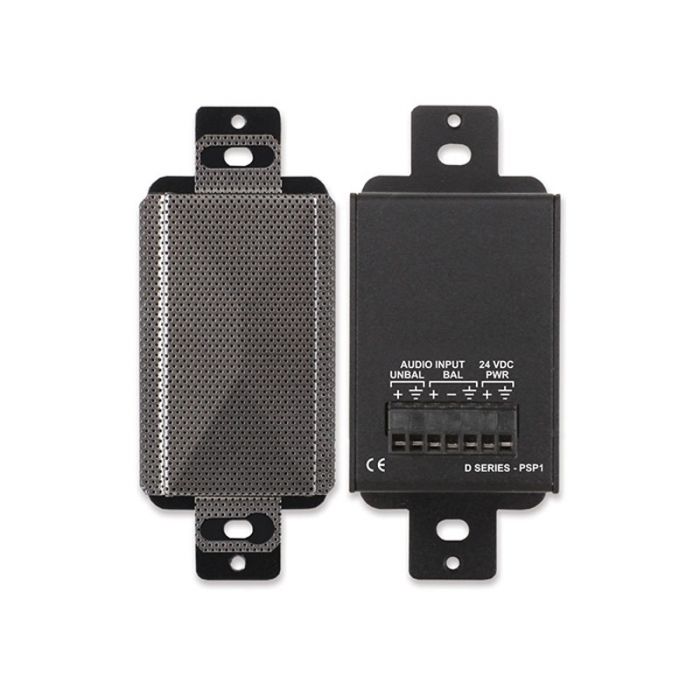

RDL DS-PSP1F

Features:

Exceptional Audio Quality for Ultra-Compact Size
2 Watt RMS Audio Amplifier
Compressor/Limiter Prevents Clipping
Balanced +4 dBu Input on the Rear Panel
Unbalanced -10 dBV input on the Rear Panel
Front-Panel Gain Adjustment
Acoustically Optimized Decora Enclosure
Fidelity Comparable to Larger Drivers
Hemispherical Dispersion Mounted In Wall or Flat Surface


Description
Specifications
Related Products
Accessories
Dimensions
Downloads
How to Buy

Inputs (2):
30 kΩ balanced or 10 kΩ unbalanced
Input Level:
+4 dBu nominal (Balanced); -10 dBV nominal (Unbalanced)
Minimum Input Level:
-18 dBu (Balanced, Max. gain); -19 dBV (Unbalanced, Max. gain)
Maximum Input Level:
+22 dBu
Gain Adjustment:
Single-turn audio taper (set by installer)
Maximum SPL:
81 dB
Frequency Range:
150 Hz to 20 kHz, nominal
CMRR:
> 50 dB (50 Hz to 120 Hz)
Power Requirement:
24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referenced
Ambient Operating Environment:
0° C to 40° C Maximum; 20° C Recommended
Dimensions:
Height: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.64 in. 6.7 cm
Package Type:
Cardboard Box
Package Dimensions:
3.625 x 4.625 x 2.125 in.
Shipping Weight:
.573 lbs.
WEEE weight:
.435 lbs.
Tariff code:
8518.21.0000
