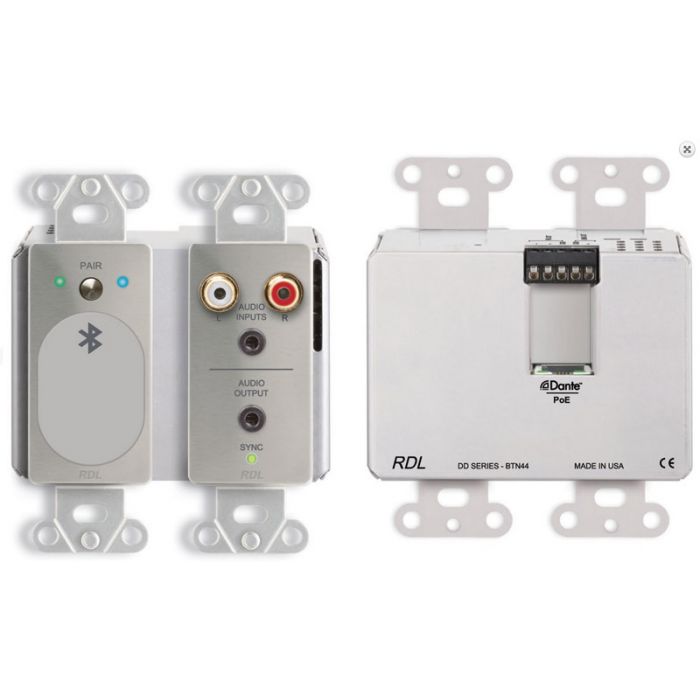

RDL DDS-BTN44 silver Line & Bluetooth Dante Interface Bi-Directional

Features:

Bluetooth Audio Input for Dante Networked System
Consumer Audio Inputs on Mini-Jack or RCA Jacks
Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
Consumer Audio Outputs on Mini-Jack
Balanced and Unbalanced Audio Line Outputs on Rear Panel
Intuitive Single Button Bluetooth Pairing with LED Status Indication
Special Software Not Required for Module Setup
Customize the Module ID Name and Settings through the Bluetooth Connection
Mono or Stereo Mode for Audio Inputs is Switch-Selectable Behind Cover Plate
Module is PoE Powered

Network Connector:
RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol:
Dante
Transmission Rate:
100 Mbps
Sample Rates Supported:
44.1 kHz, 48 kHz (default)
Bit Depth Supported:
24 bits
Audio Operating Levels:
-20 dBFS = +4 dBu (balanced); -20 dBFS = -10 dBV (unbalanced), nominal
Bluetooth® to Network Interface Section
Frequency Response:
20 Hz to 20 kHz (± 0.5 dB)
THD+N:
< 0.1%
Noise below -20 dBFS:
< -70 dB
Network to Bluetooth® Interface Section
Voice signal feeding device:
One Dante channel (mono, -20 dBFS nominal)
Network to Mini Jack Output Section
Output:
Stereo mini jack
Frequency Response:
20 Hz to 20 kHz (± 0.75)
THD+N:
< 0.05%
Noise below -20 dBFS:
< -80 dB
Crosstalk (channel to channel):
< 80 dB
Network to Line Output Section
Outputs:
Balanced and unbalanced on detachable terminal block
Frequency Response:
20 Hz to 20 kHz (± 0.5 dB)
THD+N:
< 0.05%
Noise below -20 dBFS:
< -80 dB
Line Inputs to Network Interface Section
Inputs (4):
Stereo Mini jack (L and R); RCA jack (L and R)
Dante channels used (2):
L and R
Frequency Response:
20 Hz to 20 kHz (± 0.25)
THD+N:
< 0.05%
Noise below -20 dBFS:
< -75 dB
Crosstalk (channel to channel):
< 75 dB
Common
Indicators (5):
Bluetooth® (2), Network Sync
Power Connection:
PoE (RJ45)
Ambient Operating Environment:
0° C to 40° C
Power Requirement:
PoE
PoE:
Class 0, IEEE 802.3af
Dimensions:
3.52" (8.94 cm) W; 4.11" (10.44 cm) H; 2.09" (5.31 cm) D
Package Type:
Cardboard Box
Package Dimensions:
6.0 x 6.0 x 2.625 in.
Shipping Weight:
1.15 lb.
WEEE weight:
0.78 lbs.
Tariff code:
8543.70.9100
