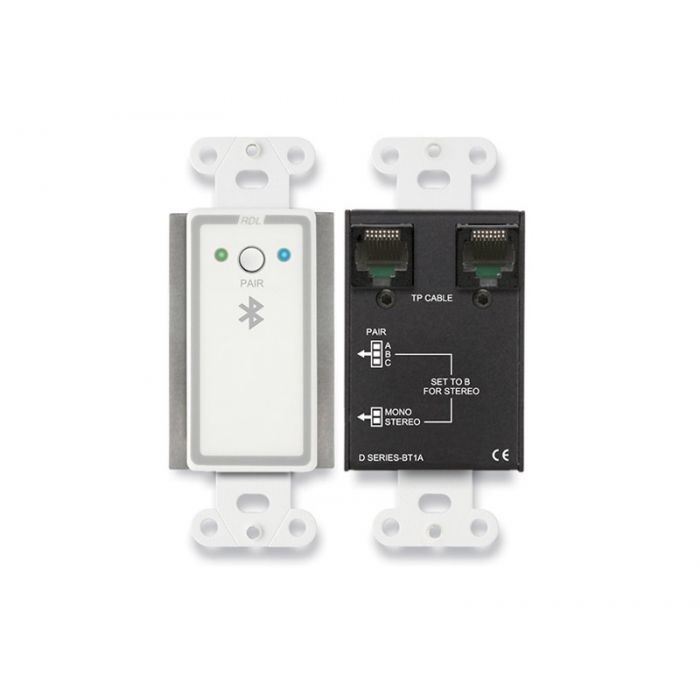

RDL D-BT1A - Bluetooth Format-A Interface

Features:

Bluetooth Audio Input for Installed Sound System
Intuitive Single Button Pairing with LED Status Indication
Special Software Not Required for Module Setup
Customize the Module ID Name and Programming Password through the Bluetooth Connection
Sends Received Bluetooth Audio to RDL Format-A Receivers
Mono Summed or Stereo Audio Input Mode is Switch-Selectable on Rear Panel
Rear-Panel Switch Selects which RJ45 Pair (A, B or C) is Fed in Mono Summed Mode
Daisy-Chain up to Three D SERIES-BT1A modules to One Format-A Receiver in Mono Mode
Remotely Powered through Twisted Pair Cable
Signal and Power Pair Pass-Through on RJ45 Jacks

Output:
RDL Format-A (RJ45)
Format-A Input:
RJ45 LOOP IN
Format-A Signal Pair Used:
A, B, or C (summed mono mode, rear-panel switch-selectable); B and C (stereo mode, pair A pass through)
Frequency Response:
20 Hz to 20 kHz (± 0.5 dB)
THD+N:
< 0.1%
Noise below -20 dBFS:
< -70 dB
Crosstalk (channel to channel):
< 70 dB
Audio Operating Levels:
-20 dBFS = +4 dBu (balanced), nominal
Ambient Operating Environment:
0° C to 40° C
Power Requirement:
24 Vdc @ 100 mA (through RJ45)
Dimensions:
1.73" (4.39 cm) W; 4.11" (10.44 cm) H; 1.62" (4.11 cm) D
Package Type:
Cardboard Box
Package Dimensions:
3.625 x 4.625 x 2.125 in.
Shipping Weight:
0.45 lb.
WEEE weight:
0.29 lbs.
Tariff code:
8543.70.9100
