RCF ZM 2124

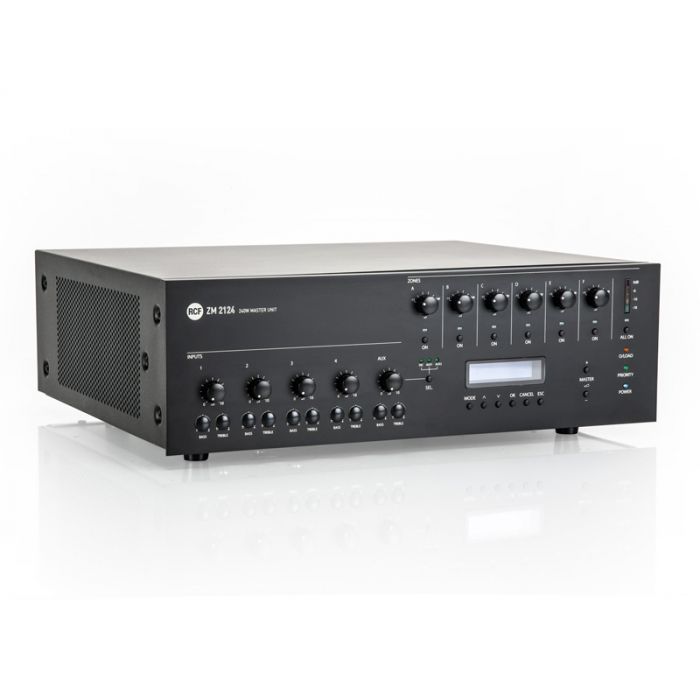

ZM 2124 is the system main unit that includes a preamplifier with 6-zone selection and a built-in 240W amplifier.
It is mostly indicated for small systems, where the required power per zone is limited.
It has input connectors for sources and can manage priority and route the two buses to the system zones.
It includes an output level control for each of the 6 zones powered by the internal 240W amplifier. An additional external amplifier is needed to keep the music programme in zones not involved by paging.

Features
Dual-bus system architecture
System Paging consoles input for up to 6 selective devices daisychained, aux input and overall emergency input on precedence primary bus
4 inputs of which 2 microphone and 2 universal, 3 selectable aux inputs with individual volume and tone controls with configurable priority on secondary bus
240W constant voltage power amplifier with VU-meter for output signal level and overload indication.
Auxiliary external amplifier input and output terminals to manage primary and secondary buses independently
Volume attenuators and switches with indicators to send or not the secondary bus program (i.e. music) on each of the 6 speaker line outputs
Link to connect up to eight ZE 2200 6six-zone expansion units so to built-up paging systems in excess of 50 zones.
Dedicated wall mounting system remote control allows you to remote the main commands available on the master unit
Priority indicator to show when any system priority circuit has been triggered
Selectable chime generator is available on announcements
GPI and GPO logic ports are available for interface purposes with third parties systems and for monitoring feedback.
RS 232 port for FW upgrade and communication/interface purposes
Power supply AC or DC24V, 3U 19" rack mounting
AMPLIFIER SPECIFICATIONS
INTERNAL AMPLIFIER TYPE: Analogue INTERNAL AMPLIFIER MAX. OUTPUT POWER: 240 W INTERNAL AMPLIFIER OUTPUT VOLTAGE: 100 – 70 V (direct), 100 V (6 zones) FREQUENCY RESPONSE (+1 / –3 dB): MIC: 60 Hz ÷ 15 kHz AU X: 50 Hz ÷ 20 kHz DISTORTION (at max. power): < 1%
INPUT SECTION
MIC input sensitivity: 1.5 mV (– 54 dBu) MIC input signal / noise ratio: > 60 dB MIC input impedance: 600 Ω (balanced) LINE input sensitivity: 200 mV (– 12 dBu) LINE input signal / noise ratio: > 70 dB LINE input impedance: 600 Ω (balanced) LINE input signal / noise ratio: > 70 dB LINE input impedance: 600 Ω (balanced) AUX input sensitivity: 200 mV (– 12 dBu) AUX input signal / noise ratio: > 75 dB AUX input impedance: 10 kΩ (unbalanced) INPUT 1÷4, AUX BASS tone control: 100 Hz ± 10 dB INPUT 1÷4, AUX TREBLE tone control: 10 kHz ± 10 dB EMERGENCY input sensitivity: 100 mV (balanced audio signal), 100 V line EMERGENCY input s/n ratio: > 70 dB EMERGENCY input impedance: 600 Ω (100 mV balanced audio signal) PAGING (RJ 45) input sensitivity: 1 V (+ 2 dBu)
OUTPUT SECTION
PRE OUT max. output level: 1 V MOH signal max. output level: 1 V (+ 2 dBm @ 600 Ω, balanced) MOH amplified output power (8 Ω): 1 W (on a 8 Ω load) AMPLIFIER 100 V input max. power: 240 W
POWER REQUIREMENT
POWER SUPPLY: 115 V / 230 V ac, 24 V MAX. POWER CONSUMPTION: 720 W OPERATING TEMPERATURE: – 10 ÷ + 45 °C (+ 14 ÷ + 113 °F)
PHISICAL SPECIFICATION
DIMENSIONS (w, h, d): 430 x 133 x 365 mm (19" rack, 3 units) NET WEIGHT: 16.1 Kg
