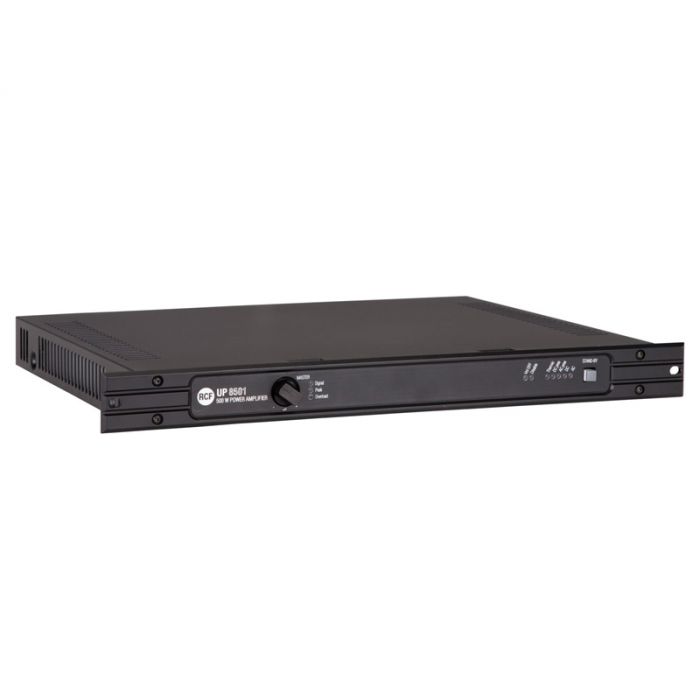

RCF UP8501
Verfügbarkeit unbekannt
Durchsagen und Musik
Amplifier Specifications
Power output: 500 W rms Frequency Response: 40 Hz ÷ 16 kHz Distortion: 0,3% Signal/noise rate: 86 dB Crosstalk: 86 dB
Input Section
Input sensitivity LINE: 0 dBu (775 mV, max. 7 V) dBu Input sensitivity AUX: 0 ÷ –20 dBu (775 ÷ 78 mV, max. 7 V) dBu Input impedance MIC: 10 kΩ kΩ High-pass filter: 200 Hz ÷ 8 kHz (passband) Hz Controls: Volume
Output Section
Output Level: 100V - 70V dBu Output Loudspeaker Constant voltage: 70V 10 Ω - 100V 20 Ω Protections: Overload - Thermal Power Requirement
Operating voltage: Mains: 115 – 230V ac ±10%, 50 – 60 Hz (internal voltage selector) Batteries: 48 V dc ±10% V ˜ Hz Power (consumption): 1 x 500 W Fuse model: 5 x 20 /FKS
Physical Specifications
Height: 44 / 1,7 mm/inch Width: 482 / 19 mm/inch Depth: 375 / 14,7 mm/inch Net weight: 5,1 / 11,24 kg/lbs
| Marke | RCF |
|---|
