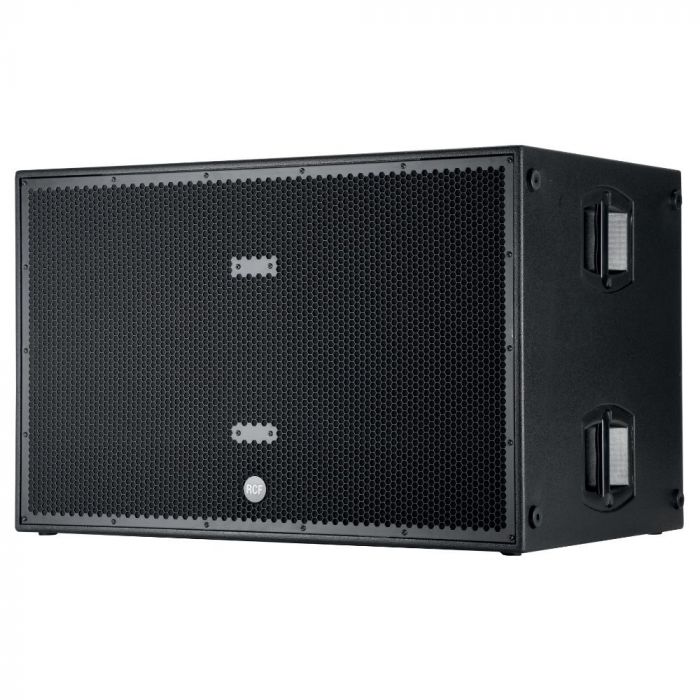

RCF SUB 8006-AS

The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series.

Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency.

Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

Applications

• Live sound
• Rental
• Portable PA, clubs, ballrooms, live theatre
• House of worship
• Theme parks
• Music playback and sound reinforcement in small and mid-size venues
• Corporate A/V professionals and sound system hire companies

Part Number

• 13000372 (230V)
• 13000373 (230V)

Features

5000 Watt Peak power - 2500 Watt RMS
141 dB max SPL
30 Hz - 120 kHz frequency response
2 x 18" Woofer
DSP controlled Input section with selectable presets
Delay control
Integrated mechanics for multiple configuration with HDL 20-A
Baltic birch tour grade cabinet

Acoustical Specifications

Frequency Response -3 dB: 30 Hz ÷ 120 kHz
Max SPL: 141 dB
Woofer: 2 x 18", 4.0" v.c.

Input/Output Section

Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu / +4 dBu

Processor Section

Crossover frequencies: Selectable 80 Hz - 100 Hz Hz
Protections: Thermal, RMS
Limiter: Fast limiter
Controls: Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid

Amplifier Specifications

Total power: 2500 W
Low frequencies: 2500 W
Cooling: Convection
Connections: Powercon in/out

Cabinet

Cabinet Material: Baltic Birch
Hardware: Mounting points
Handles: 4 side
Colour: Black

Physical Specifications

Height: 709 / 27.91 mm/inch
Width: 700 / 27.5 mm/inch
Depth: 1109 / 43.66 mm/inch
Net Weight: 90 / 198.41 kg/lbs
