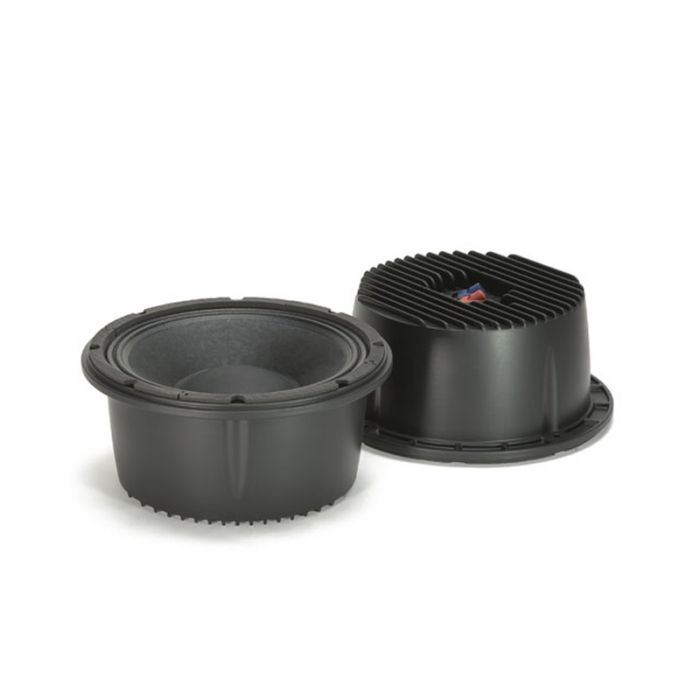

RCF MR10N301

The MR10N301 is a high efficiency, high power midrange specially designed to provide superior sound pressure level in a very compact size.
The total weight is reduced to less than half of a comparable ceramic midrange thanks to an incredibly powerful neodymium magnet assembly.
The unique sealed basket design doesn't require a back sealing chember, simplifying the cabinet design and improving heat dissipation.
Every detail of this speaker has been optimazed to offer the best response and perfect control to the midrange frequencies.

10" Leistung: 350W RMS / 700W Programmleistung Schalldruck SPL 1W/1m: 102dB Freq. Range 250-4500 Hz 8Ohm

Features

* 3-inch, finside/outside copper voice coil
* 600W continuous program power handling
* 109 dB Sensitivity in horn loaded application
* 150 Hz – 2 kHz Frequency range
* High BL neodymium design
* Unique aluminum sealed basket featuring vented fin heat dissipation design
* Calibrated back volume for a perfect time domain transient reproduction

General Specifications

* Nominal Diameter: 260 / 10 mm/inch
* Rated Impedance: 8 Ω
* Program Power: 600 W AES
* Power handling capacity: 300 W AES
* Sensitivity: 102 dB
* Frequency Range: 150 Hz ÷ 2000 Hz
* Effective Piston Diameter: 210 / 8.3 mm/inch
* Max Excursion Before Damage (peak to peak): 20 / 0.8 mm/inch
* Minimum Impedance: 8.5 Ω
* Voice Coil Diameter: 76 / 3 mm/inch
* Voice Coil Material: Alluminum
* Voice Coil Winding Depth: 11 / 0.4 mm/inch
* Number of layers: 2
* Kind of layer: inside / outside
* Top Plate Thickness: 10 / 0.4 mm/inch
* Cone Material: No pressed pulp
* Cone Design: Curved
* Surround Material: Polycotton
* Surround Design: M - roll

Thiele/Small Parameters

* DC resistance: 6.2Ω
* Mechanical factor: 6.48
* Electrical factor: 0.72
* Total factor: 0.65
* BL Factor: 20.7 T · m
* Effective Moving Mass: 31.8 g
* Equivalent Cas air load: 2.2 liters
* Effettive piston area: 0.035 m²
* Max. linear excursion (mathematical): 1.4 mm
* Voice - coil inductance @ 1kHz: 1.17 mH
* Half-space efficiency: 9.26%

Mounting information

* Overall Diameter: 272 / 10.7 mm/inch
* Bolt Circle Diameter: 244 / 9.6 mm/inch
* Bolt Hole Diameter: 7 / 0.3 mm/inch
* Front Mount Baffle Cut-out: 235 / 9.3 mm/inch
* Rear Mount Baffle Cut-out: 232 / 9.1 mm/inch
* Depth: 124 / 4.9 mm/inch
* Volume occupied by the driver: 5.0 / 0.18 liters/ft³
* Net Weight: 3.9 / 8.6 kg/lbs

Shipping information

* Shipping weight: 4.3 / 9.5 kg/lb
