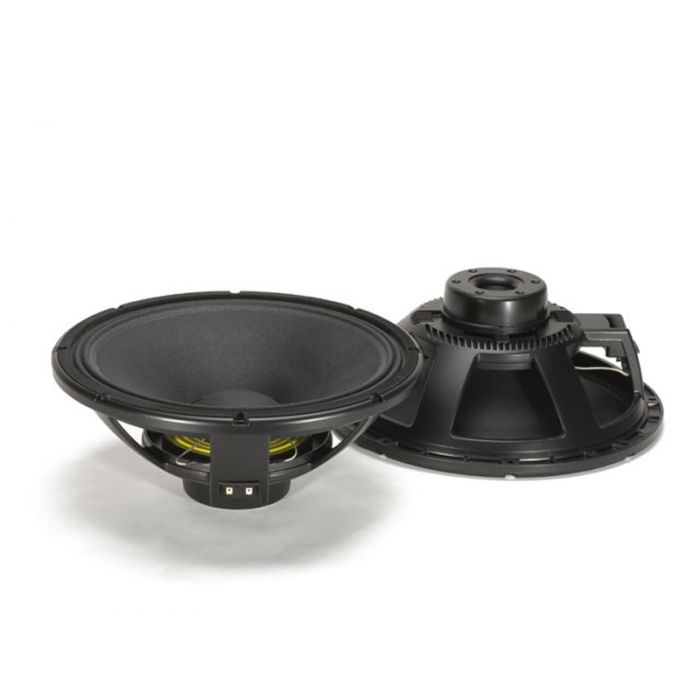

RCF MB15N351
Verfügbarkeit unbekannt
15" Transducer with 1300W continuous program power handling
This MB15N351 is designed to provide an excellent linearity in the frequency response with low distortion.
The transducer is built around a very stronger neodymium magnetic structure and a new 3,5” voice coil, this combination provides to increase the power handling especially in comparison a standard 3" voice coil.
The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation for minimize the power compression at the higher power handling
15" Leistung: 650W RMS, 1300W Programmleistung Schalldruck SPL 1W/1m: 99dB Freq. Range 40-2000 Hz
Features
* 3.5-inch, inside/outside copper voice coil
* 1300W continuous program power handling
* 100 dB Sensitivity
* 40 Hz – 3 kHz Frequency range
* Dual-forced air ventilation for minimum power compression
* Dual spider design with silicon based dampening control
General Specifications
* Nominal Diameter: 380/15 mm/inch
* Rated Impedance: 8 Ω
* Program Power: 1300 W AES
* Power handling capacity: 650 W AES
* Sensitivity: 100 dB
* Frequency Range: 40 Hz ÷ 3000 Hz
* Effective Piston Diameter: 330 / 13 mm/inch
* Max Excursion Before Damage (peak to peak): 39 / 1.5 mm/inch
* Minimum Impedance: 6.8 Ω
* Voice Coil Diameter: 87 / 3.4 mm/inch
* Voice Coil Material: Copper
* Voice Coil Winding Depth: 16.5 / 0.65 mm/inch
* Number of layers: 2
* Kind of layer: inside/outside
* Top Plate Thickness: 11 / 0.43 mm/inch
* Cone Material: No pressed pulp
* Cone Design: Curved
* Surround Material: Polycotton
* Surround Design: M - roll
Thiele/Small Parameters
* DC resistance: 5.6Ω
* Mechanical factor: 4.0
* Electrical factor: 0.24
* Total factor: 0.22
* BL Factor: 22.5 T · m
* Effective Moving Mass: 80 g
* Equivalent Cas air load: 191 liters
* Effettive piston area: 0.0855 m²
* Max. linear excursion (mathematical): 5.5 mm
* Voice - coil inductance @ 1kHz: 1.65 mH
* Half-space efficiency: 5.68%
Mounting information
* Overall Diameter: 393 / 15.5 mm/inch
* Bolt Circle Diameter: 371-376 / 14.6-14.8 mm/inch
* Bolt Hole Diameter: 6.5 / 0.3 mm/inch
* Front Mount Baffle Cut-out: 354/13.9 mm/inch
* Rear Mount Baffle Cut-out: 354 / 13.9 mm/inch
* Depth: 164 / 6.4 mm/inch
* Volume occupied by the driver: 3.8 / 0.13 liters/ft³
* Net Weight: 5.0 / 11.0 kg/lbs
Shipping information
* Shipping weight: 5.8 / 12.7 kg/lbs
| Marke | RCF |
|---|
