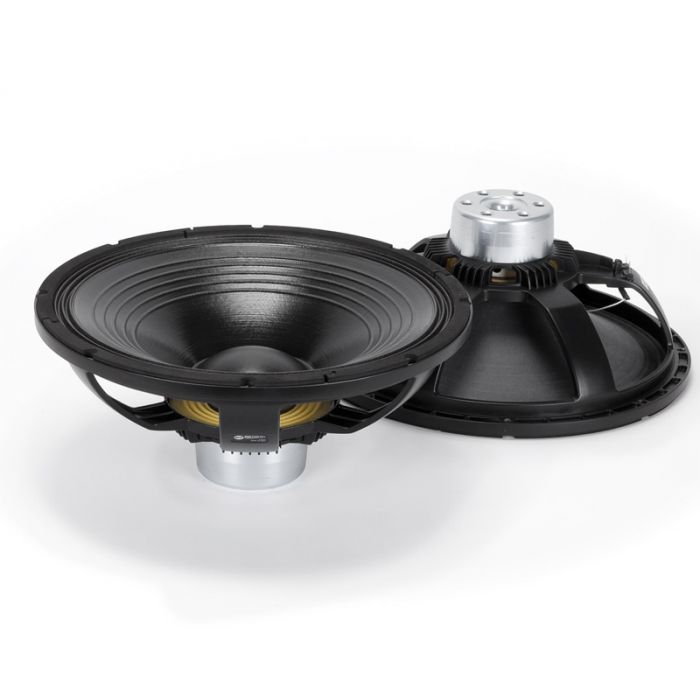

RCF MB15N301

The MB15N301 is a neodymium, high efficiency, 15” mid-bass. High sensitivity, excellent linearity and very high power handling capabilities. The magnetic structure is powered by a large neodymium magnet that provides an extremely high flux density in the gap. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special air-forced ventilations are provided for voice coil, magnet assembly and basket. M-roll surround and spider design offer great linearity and precise reproduction.

15" Leistung: 500W RMS, 1000W Programmleistung Schalldruck SPL 1W/1m: 99,5dB Freq. Range 40-3500 Hz

Features

* 3.0-inch, fibreglass inside/outside copper voice coil
* 1000 Watt continuous program power handling
* 99 dB Sensitivity
* 40Hz –3.5KHz Frequency range
* Dual-forced air ventilation for minimum power compression
* Triple-roll surround and exponential cone geometry

General Specifications

* Nominal Diameter: 380 / 15 mm/inch
* Rated Impedance: 8 Ω
* Program Power: 1000 W AES
* Power handling capacity: 500 W AES
* Sensitivity: 99 dB
* Frequency Range: 40 Hz ÷ 3500 Hz
* Effective Piston Diameter: 330 / 13.0 mm/inch
* Max Excursion Before Damage (peak to peak): 40 / 1.57 mm/inch
* Minimum Impedance: 6.8 Ω
* Voice Coil Diameter: 76 / 3.0 mm/inch
* Voice Coil Material: Aluminium
* Voice Coil Winding Depth: 17 / 0.76 mm/inch
* Number of layers: 2
* Kind of layer: inside / outside
* Top Plate Thickness: 10 / 0.39 mm/inch
* Cone Material: No pressed pulp
* Cone Design: Curved
* Surround Material: Polycotton
* Surround Design: Triple roll

Thiele/Small Parameters

* Resonance frequency: 48 Hz
* DC resistance: 5.8Ω
* Mechanical factor: 4.6
* Electrical factor: 0.39
* Total factor: 0.37
* BL Factor: 19.2 T · m
* Effective Moving Mass: 90 g
* Equivalent Cas air load: 134 liters
* Effettive piston area: 0.086 m²
* Max. linear excursion (mathematical): 6.0 mm
* Voice - coil inductance @ 1kHz: 0.9 mH
* Half-space efficiency: 3.70%

Mounting information

* Overall Diameter: 388 / 15.3 mm/inch
* Bolt Circle Diameter: 369-373.5 / 14.5-14.7 mm/inch
* Bolt Hole Diameter: 5.5 / 0.22 mm/inch
* Front Mount Baffle Cut-out: 355 / 13.98 mm/inch
* Rear Mount Baffle Cut-out: 358 / 14.09 mm/inch
* Depth: 152 / 5.98 mm/inch
* Volume occupied by the driver: 3.0 / 0.11 liters/ft³
* Net Weight: 3.7 / 8.16 kg/lbs

Shipping information

* Shipping weight: 4.7 / 10.36 kg/lb
