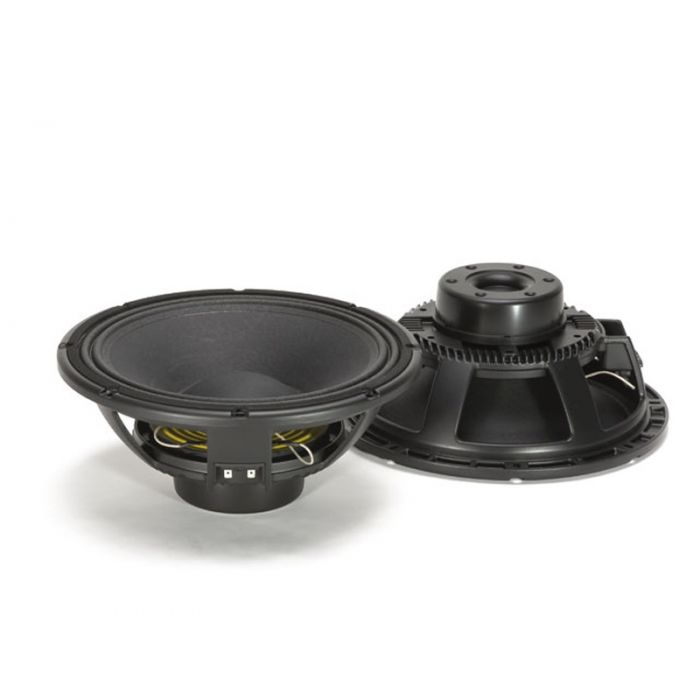

RCF MB12N351
Verfügbarkeit unbekannt
12" Transducer with an excellent frequency response linearity and very low distortion
The MB12N351 is designed to provide an excellent frequency response linearity with very low distortion.
A very strong neodymium magnetic structure guarantee dynamic and precision, a new and unique 3.5” voice coil design provides a very high power handling, especially recommended in comparison to a standard 3" voice coil.
The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation to minimize the power compression and provide higher power handling.
12" Leistung: 650W RMS, 1300W Programmleistung Schalldruck SPL 1W/1m: 99dB Freq. Range 45-3000 Hz
Features
* 3.5-inch, fiberglass inside/outside copper voice coil
* 1300W continuous program power handling
* 99 dB Sensitivity
* 45 Hz – 3 kHz Frequency range
* Dual-forced air ventilation for minimum power compression
* Single spider design with silicon based damping control
General Specifications
* Nominal Diameter: 300 / 12 mm/inch
* Rated Impedance: 8 Ω
* Program Power: 1300 W AES
* Power handling capacity: 650 W AES
* Sensitivity: 99 dB
* Frequency Range: 45 Hz ÷ 3000 Hz
* Effective Piston Diameter: 260 / 10.2 mm/inch
* Max Excursion Before Damage (peak to peak): 39 / 1.5 mm/inch
* Minimum Impedance: 7.0 Ω
* Voice Coil Diameter: 87 / 3.4 mm/inch
* Voice Coil Material: Copper
* Voice Coil Winding Depth: 16.5 / 0.65 mm/inch
* Number of layers: 2
* Kind of layer: inside / outside
* Top Plate Thickness: 11 / 0.43 mm/inch
* Cone Material: No pressed pulp
* Cone Design: Curved
* Surround Material: Polycotton
* Surround Design: M - roll
Thiele/Small Parameters
* Resonance frequency: 55 Hz
* DC resistance: 5.6Ω
* Mechanical factor: 4.5
* Electrical factor: 0.21
* Total factor: 0.20
* BL Factor: 22.5 T · m
* Effective Moving Mass: 54 g
* Equivalent Cas air load: 61 liters
* Effettive piston area: 0.053 m²
* Max. linear excursion (mathematical): 5.5 mm
* Voice - coil inductance @ 1kHz: 1.65 mH
* Half-space efficiency: 4.66%
Mounting information
* Overall Diameter: 320 / 12.6 mm/inch
* Bolt Circle Diameter: 293-304 / 11.5-12 mm/inch
* Bolt Hole Diameter: 6.5 / 0.3 mm/inch
* Front Mount Baffle Cut-out: 282 / 11.1 mm/inch
* Rear Mount Baffle Cut-out: 284 / 11.2 mm/inch
* Depth: 138 / 5.4 mm/inch
* Volume occupied by the driver: 2.2 / 0.077 liters/ft³
* Net Weight: 4.4 / 9.7 kg/lbs
Shipping information
* Shipping weight: 5.2 / 11.4 kg/lbs
