RCF MB10N251
Verfügbarkeit unbekannt
10” neodymium mid-bass driver with an excellent linearity, good efficiency and high power handling capabilities

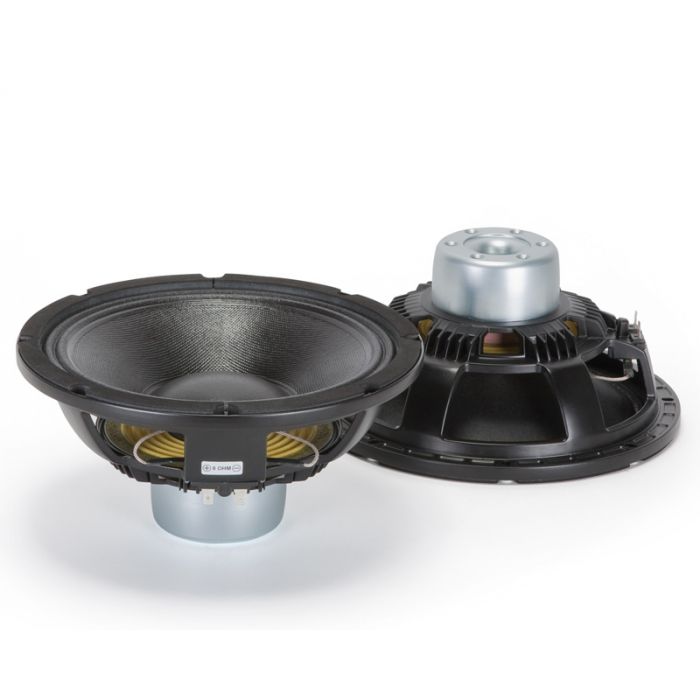

The MB10N251 is a 10” neodymium mid-bass driver with an excellent linearity, good efficiency and high power handling capabilities. The 2,5” aluminium voice coil combined with a high strength fibreglass former allows high efficiency and good frequency response extension. Aluminium basket and magnetic assembly design provide an excellent heat dissipation and very low power compression.
The M-roll surround shape combined to spider design offer good linear displacement and precise low frequency reproduction.
10" Leistung: 300W RMS, 600W Programmleistung Schalldruck SPL 1W/1m: 97dB Freq. Range 50-3500 Hz
Features
* 2.5-inch , fibreglass former, aluminum voice coil
* 600 Watt continuous program power handling
* 97 dB Sensitivity
* 50 Hz - 3.5kHz Frequency range
* Forced air ventilation
* M-roll surround and exponential cone geometry
General Specifications
* Nominal Diameter: 250 / 10 mm/inch
* Rated Impedance: 8 Ω
* Program Power: 600 W AES
* Power handling capacity: 300 W AES
* Sensitivity: 97 dB
* Frequency Range: 50 Hz ÷ 3500 Hz
* Effective Piston Diameter: 210 / 8.27 mm/inch
* Max Excursion Before Damage (peak to peak): 40 / 1.57 mm/inch
* Minimum Impedance: 6.4 Ω
* Voice Coil Diameter: 64 / 2.51 mm/inch
* Voice Coil Material: Aluminum
* Voice Coil Winding Depth: 14 / 0.55 mm/inch
* Number of layers: 1
* Kind of layer: outside
* Top Plate Thickness: 9 / 0.35 mm/inch
* Cone Material: No pressed pulp
* Cone Design: Curved
* Surround Material: Polycotton
* Surround Design: M - roll
Thiele/Small Parameters
* Resonance frequency: 55 Hz
* DC resistance: 5.1Ω
* Mechanical factor: 4.1
* Electrical factor: 0.29
* Total factor: 0.27
* BL Factor: 15.2 T · m
* Effective Moving Mass: 36 g
* Equivalent Cas air load: 38.8 liters
* Effettive piston area: 0.035 m²
* Max. linear excursion (mathematical): 4.8 mm
* Voice - coil inductance @ 1kHz: 1.3 mH
* Half-space efficiency: 2.20%
Mounting information
* Overall Diameter: 260 / 10.24 mm/inch
* Bolt Circle Diameter: 241-246 / 9.5-9.6 mm/inch
* Bolt Hole Diameter: 5.5 / 0.21 mm/inch
* Front Mount Baffle Cut-out: 234 / 9.21 mm/inch
* Rear Mount Baffle Cut-out: 234 / 9.21 mm/inch
* Depth: 113 / 4.45 mm/inch
* Volume occupied by the driver: 1.2 / 0.04 liters/ft³
* Net Weight: 2.2 / 4.85 kg/lbs
Shipping information
* Shipping weight: 2.4 / 5.29 kg/lb
| Marke | RCF |
|---|
