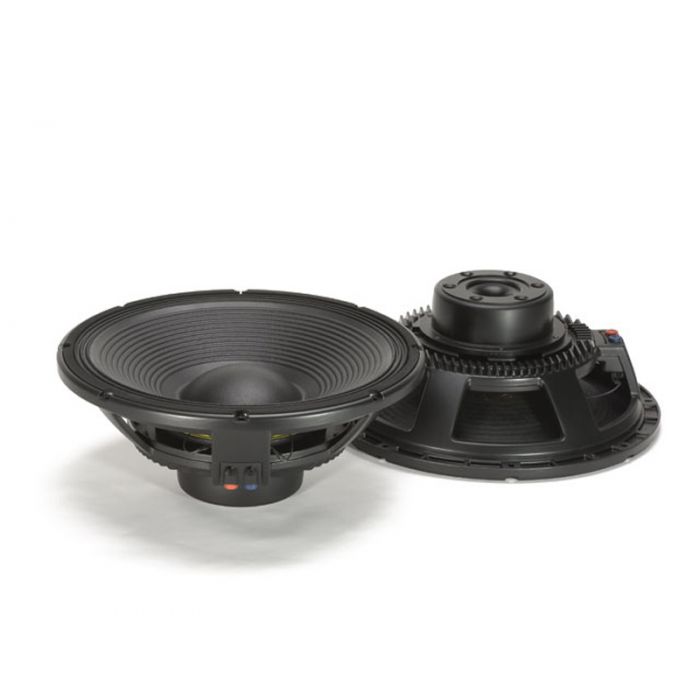

RCF LF15N401

Incredibly linear frequency response characteristics, the highest power handling of any comparable 15-inch neodymium transducer,the lower power compression.
The LF15N401 uses a fibre loaded cone assembly along with a high excursion triple roll,constant geometry surround.
This combination provides remarkable strength and a peak to peak maximum excursion of 52mm.
The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation for minimum power compression and higher power handling.

15" Leistung: 900W RMS, 1800W Programmleistung Schalldruck SPL 1W/1m: 97dB Freq. Range 35-1500 Hz

Features

* 4-inch, fiberglass inside/outside copper voice coil
* 1800W continuous program power handling
* 97 dB Sensitivity
* 35 Hz – 1.5 kHz Frequency range
* Dual-forced air ventilation and 15mm top plate for minimum power compression
* Dual spider design with silicon based dampening control
* Triple-roll surround and corrugated straight cone geometry

General Specifications

* Nominal Diameter: 380 / 15 mm/inch
* Rated Impedance: 8 Ω
* Program Power: 1800 W AES
* Power handling capacity: 900 W AES
* Sensitivity: 97 dB
* Frequency Range: 35 Hz ÷ 1500 Hz
* Effective Piston Diameter: 340/13.4 mm/inch
* Max Excursion Before Damage (peak to peak): 52 / 2.1 mm/inch
* Minimum Impedance: 6.3 Ω
* Voice Coil Diameter: 100 / 4 mm/inch
* Voice Coil Material: Copper
* Voice Coil Winding Depth: 25 / 1.0 mm/inch
* Number of layers: 2
* Kind of layer: inside / outside
* Top Plate Thickness: 15 / 0.6 mm/inch
* Cone Material: No pressed pulp
* Cone Design: Straight
* Surround Material: Polycotton
* Surround Design: Triple roll

Thiele/Small Parameters

* DC resistance: 5.1Ω
* Mechanical factor: 5.8
* Electrical factor: 0.23
* Total factor: 0.22
* BL Factor: 27.8 T · m
* Effective Moving Mass: 158 g
* Equivalent Cas air load: 160 liters
* Effettive piston area: 0.091 m²
* Max. linear excursion (mathematical): 8.8 mm
* Voice - coil inductance @ 1kHz: 2.5 mH
* Half-space efficiency: 2.64%

Mounting information

* Overall Diameter: 393 / 15.5 mm/inch
* Bolt Circle Diameter: 371-376 / 14.6-14.8 mm/inch
* Bolt Hole Diameter: 6.5 / 0.3 mm/inch
* Front Mount Baffle Cut-out: 354 / 13.9 mm/inch
* Rear Mount Baffle Cut-out: 354 / 13.9 mm/inch
* Depth: 158 / 6.2 mm/inch
* Volume occupied by the driver: 3.8 / 0.13 liters/ft³
* Net Weight: 8.6 / 19.1 kg/lbs

Shipping information

* Shipping weight: 9.3 / 20.7 kg/lbs
