RCF LF15G401

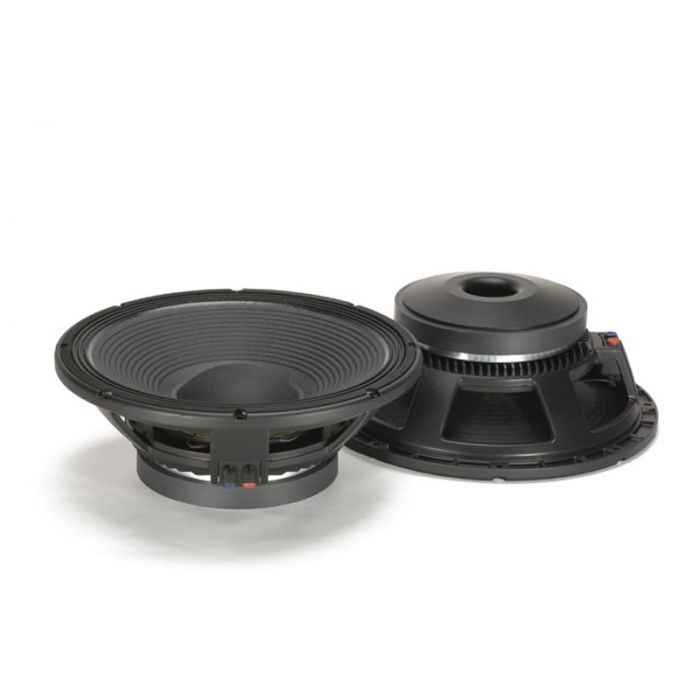

RCF LF15G401 highpower woofer 15"

The LF15g401 is a 15-inch woofer with linear frequency response cheracteristics and very high power handling.

The LF15G401 uses a fibre loaded cone assembly along with a high excursion triple roll, constant geometry surround.
This combination provides remarkable strength and a peak to peak maximum excursion of 52mm.

Features:

-4-inch, fiberglass inside/outside copper voice coil
-1600W continuous program power handling
-97 dB Sensitivity
-30 Hz – 1.5 kHz Frequency range
-Dual spider design with silicon based dampening control
-Triple-roll surround and corrugated straight cone geometry

Applications:

• The LF15G401 is ideal for use in applications where incredible power handling, long excursion and perfect control is required.
• Ideal for high quality professional bass reflex and bass-horn system.
• The robust mechanical design and optimised weight of the device make it desirable for use in fixed installation or portable professional loudspeaker system.
• Very good for 3 way, extended low frequency configurations.

General Specifications:

Nominal Diameter: 380 / 15 mm/inch
Rated Impedance: 8 Ω
Program Power: 1600 W AES
Power handling capacity: 800 W AES
Sensitivity: 97 dB
Frequency Range: 35 Hz ÷ 1500 Hz
Effective Piston Diameter: 340 / 13.4 mm/inch
Max Excursion Before Damage (peak to peak): 52 / 2.1 mm/inch
Minimum Impedance: 6.1 Ω
Voice Coil Diameter: 100 / 4 mm/inch
Voice Coil Material: Copper
Voice Coil Winding Depth: 23 / 0.9 mm/inch
Number of layers: 2 Kind of layer: inside / outside
Top Plate Thickness: 12 / 0.5 mm/inch
Cone Material: No pressed pulp
Cone Design: Straight Surround
Material: Polycotton
Surround Design: Triple roll
