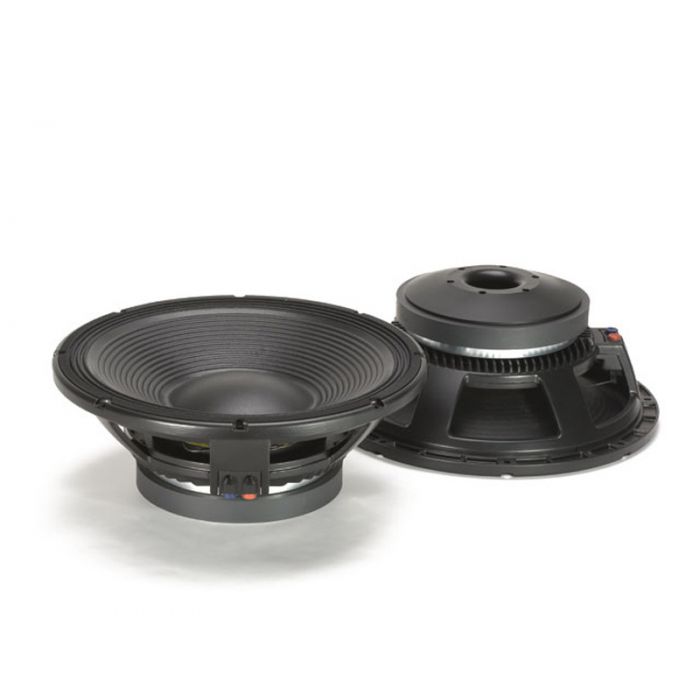

RCF L15P400

Incredibly linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 15-inch trasducer wtihin its application range.

The L15P400 uses a fibre loaded cone assembly along with a high excursion triple roll surround.
This combination provides remarkable strength and a peak to peak maximum excursion of 52mm.
The T-pole also features RCF Precision's spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reachees its maximum excursion limits.Forced air venting system.

15" Leistung: 800W RMS, 1600W Programmleistung Schalldruck SPL 1W/1m: 97dB Freq. Range 30-1500 Hz

Features

* 4-inch, fiberglass inside/outside copper voice coil
* 1600W continuous program power handling
* 97 dB Sensitivity
* 30 Hz – 1.5 kHz Frequency range
* Aluminum demodulation ring
* Forced air ventilation and 14mm top plate for minimum power compression
* Dual spider design with silicon based dampening control
* Triple-roll surround and corrugated straight cone geometry

General Specifications

* Nominal Diameter: 380 / 15 mm/inch
* Rated Impedance: 8 Ω
* Program Power: 1600 W AES
* Power handling capacity: 800 W AES
* Sensitivity: 97 dB
* Frequency Range: 30 Hz ÷ 1500 Hz
* Effective Piston Diameter: 340 / 13.4 mm/inch
* Max Excursion Before Damage (peak to peak): 50 / 2 mm/inch
* Minimum Impedance: 6.3 Ω
* Voice Coil Diameter: 100 / 4 mm/inch
* Voice Coil Material: Copper
* Voice Coil Winding Depth: 23 / 0.9 mm/inch
* Number of layers: 2
* Kind of layer: inside / outside
* Top Plate Thickness: 14 / 0.55 mm/inch
* Cone Material: No pressed pulp
* Cone Design: Straight
* Surround Material: Polycotton
* Surround Design: Triple roll

Thiele/Small Parameters

* Resonance frequency: 36 Hz
* DC resistance: 4.8Ω
* Mechanical factor: 7.5
* Electrical factor: 0.27
* Total factor: 0.25
* BL Factor: 24.8 T · m
* Effective Moving Mass: 150 g
* Equivalent Cas air load: 160 liters
* Effettive piston area: 0.091 m²
* Max. linear excursion (mathematical): 8.0 mm
* Voice - coil inductance @ 1kHz: 2.2 mH
* Half-space efficiency: 2.6%

Mounting information

* Overall Diameter: 393 / 15.5 mm/inch
* Bolt Circle Diameter: 371-376 / 14.6-14.8 mm/inch
* Bolt Hole Diameter: 6.5 / 0.3 mm/inch
* Front Mount Baffle Cut-out: 352 / 13.9 mm/inch
* Rear Mount Baffle Cut-out: 360 / 14.2 mm/inch
* Depth: 158 / 6.2 mm/inch
* Volume occupied by the driver: 4.3 / 0.15 liters/ft³
* Net Weight: 12.6 / 27.7 kg/lbs

Shipping information

* Shipping weight: 13.6 / 29.9 kg/lbs
