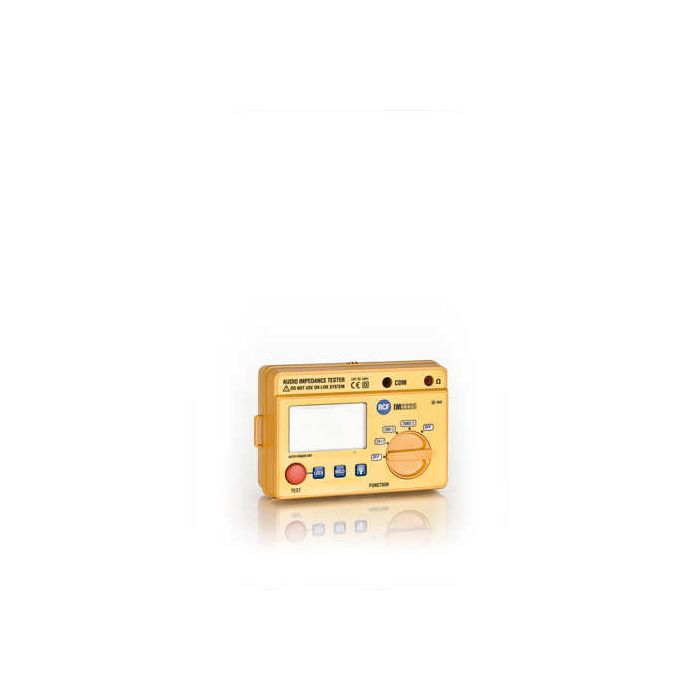

RCF IM 2220

Impedanz Messgerät

The IM 2220 is a portable instrument, easy to use for measuring the impedance of the constant voltage speaker lines or of a single loudspeaker.

The test range is quite wide thanks to the three measure fields (20 Ohm, 200 Ohm, 2000 Ohm). It is suitable for both commercial audio and domestic use. The IM 2220 is easy to use, comfortable and safe, thanks to the large control knob, to the large display and the high insulation.

Applications

• Test measurament

Part Number

• 13360089

Features

The IM 2220 is a portable instrument, easy to use for measuring the impedance of the constant voltage speaker lines or of a single loudspeaker
The test range is quite wide thanks to the three measure fields (20 Ohm,200 Ohm, 2000 Ohm). It is suitable for both commercial audio and domestic use
The IM 2220 is easy to use, comfortable and safe, thanks to the large control knob, to the large display and the high insulation
Meets IEC-1010 (EN 61010); CAT III 100V
Display 3 ½ digit LCD
Data HOLD indication
Automatic switch-off of the pilot tone after 20s unless the LOCK key is pressed
Automatic switch-off of the device after 15 minutes without being used

GENERAL SPECIFICATION
Display: 3 ½ digit LCD (up to 2000) with unit
Data HOLD indication: H symbol appears on the display
Power supply: 9 V dc (6 x 1.5 V battery AA alkaline)
Altitudine: up to 2000 m (~ 6500 ft)
Ambient temperature: 0 ÷ 40 / 32 ÷ 104 °C / °F
Battery: 6 x 1.5 V AA Alkaline
Signal test frequency: 1 kHz

PHISICAL SPECIFICATION
Height: 110 / 4.33 mm/inch
Width: 168 / 6.61 mm/inch
Depth: 62 / 2.44 mm/inch
Net Weight: 1.05 / 2.31 Kg/Lbs

SHIPPING INFORMATION
Package height: 205 / 8.07 mm/inch
Package width: 235 / 9.25 mm/inch
Package depth: 95 / 3.74 mm/inch
Shipping Weight: 1.17 / 2.57 Kg/Lbs
