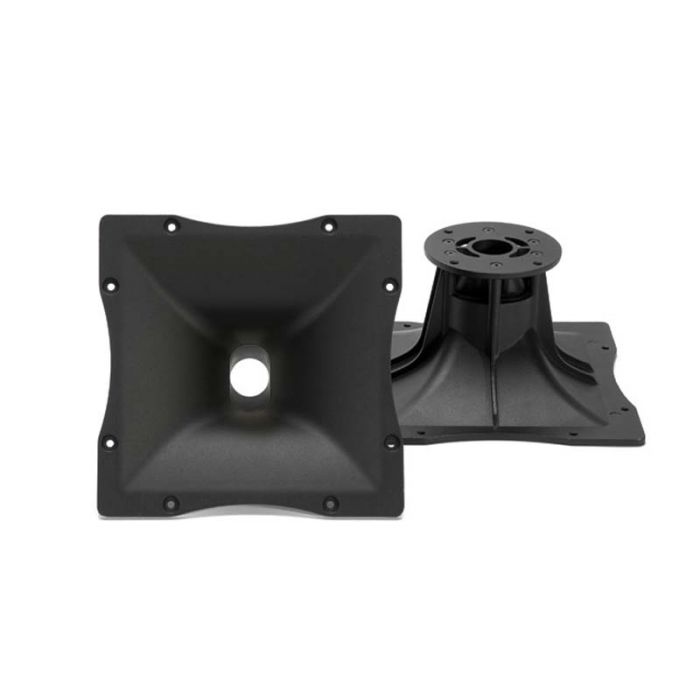

RCF HF94

Aluminium-Horn mit den Außenmaßen 250 x 250mm, einer Tiefe von 150mm sowie einer Grenzfrequenz von 500 Hz

Features

* 1-inch/1.4 inch Throat Adaptor
* 90° x 40° Constant Directivity Coverage
* Loading down to 500 Hz
* Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers
* Perfectly Controlled Dispertion

GENERAL SPECIFICATIONS
# Throat Diameter: 25.4 - 36 / 1.0 - 1.4 mm/inch
# Nominal coverage angle (-6dB): 90°x40°
# Cut-off Frequency: 500 Hz
# Material: Aluminium

MOUNTING INFORMATION
# Overall Dimensions: 250x250 / 9.84x9.84 mm/inch
# Baffle Cut-out Dimensions: 200x200 / 7.87x7.87 mm/inch
# Total Depth: 180 / 7.08 mm/inch
# Driver Mounting 4 x 6.5 mm holes: 101 - 176 / 3.97 - 6.92 mm/inch
# Net Weight : 1.3 / 2.86 Kg/Lbs
# Shipping Weight : 1.5 / 3.3 Kg/Lbs
