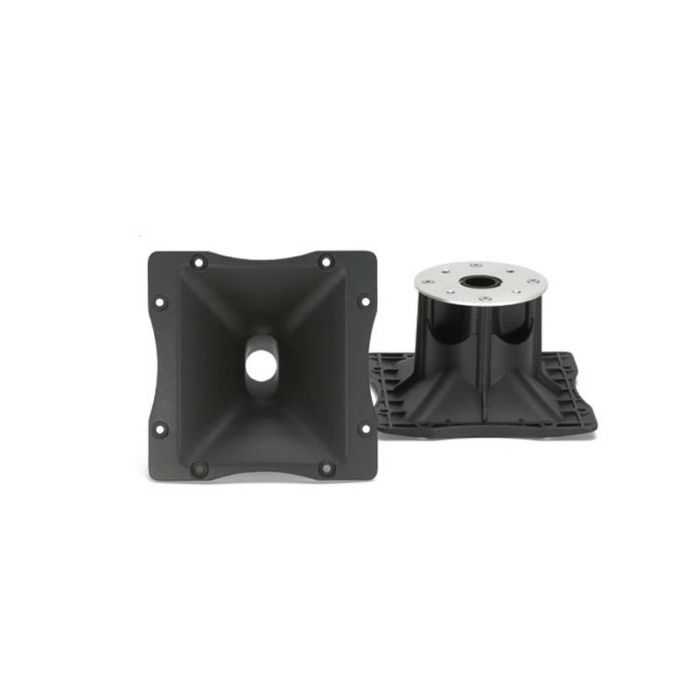

RCF HF101

Aluminium-Horn mit den Außenmaßen 180 x 180mm, einer Tiefe von 90mm sowie einer Grenzfrequenz von 1000 Hz

Features

* 1-inch Throat Adaptor
* 90° x 70° Constant Directivity Coverage
* Loading down to 1000 Hz
* Aluminum Body
* Perfectly Controlled Dispertion

GENERAL SPECIFICATIONS
# Throat Diameter: 25.4 - 36 / 1.0 - 1.4 mm/inch
# Nominal coverage angle (-6dB): 90°x70°
# Cut-off Frequency: 1000 Hz
# Material: Aluminium

MOUNTING INFORMATION
# Overall Dimensions: 180x180 / 7.08x7.08 mm/inch
# Baffle Cut-out Dimensions: 150 x150 / 5.9x5.9 mm/inch
# Total Depth: 90 / 3.54 mm/inch
# Driver Mounting 4 x 6.5 mm holes: 76 / 2.99 mm/inch
# Net Weight : 0.7 / 1.54 Kg/Lbs
# Shipping Weight : 0.9 / 1.98 Kg/Lbs
