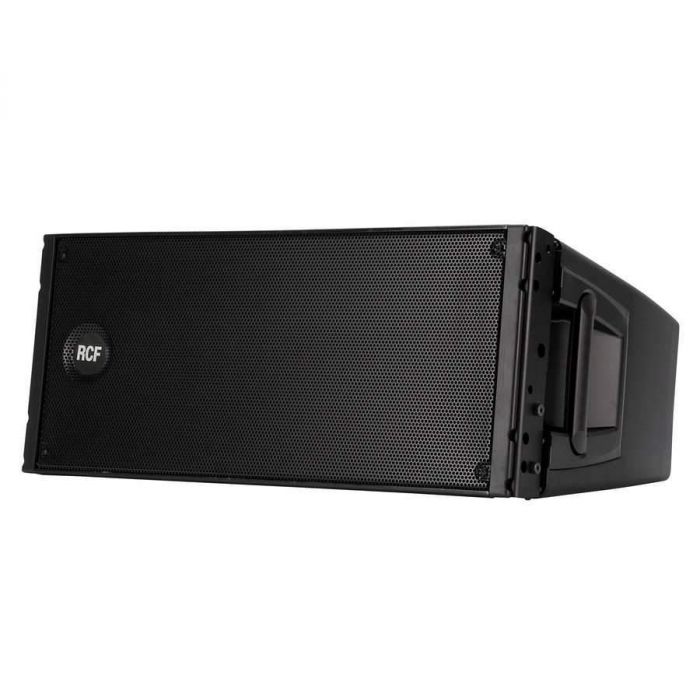

RCF HDL 20-A

The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations.

The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. The system features state of the art RCF transducers, two powerful 10” for a solid bass reproduction and a large format 3” voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic.

Applications

• Live sound
• Rental
• Portable PA, clubs, ballrooms, live theatre
• House of worship
• Theme parks
• Music playback and sound reinforcement in small and mid-size venues
• Corporate A/V professionals and sound system hire companies

Part Number

• 13040007 (230V)
• 13040008 (230V)

Features

1400 Watt Peak power - 700 Watt RMS
135 dB max SPL
55 Hz 20 kHz frequency response
2 x 10" Woofers
1 x 3" Compression Driver
DSP controlled Input section with selectable presets
Tour grade safe and solid variable mechanics
Composite PP enclosure structurally wooden reinforced

Acoustical Specifications

Frequency Response -3 dB: 55 Hz ÷ 20 kHz
Max SPL: 135 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 15°
Compression Driver: 2", 3.0" v.c.
Woofer: 2 x 10", 2.5" v.c.

Input/Output Section

Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu / +4 dBu

Processor Section

Crossover frequencies: 1000 Hz
Protections: Thermal, RMS
Limiter: Soft limiter
Controls: Cluster, HF, High curving, Indoor

Amplifier Specifications

Total power: 700 W
High frequencies: 200 W
Low frequencies: 500 W
Cooling: Convection
Connections: Powercon in/out

Cabinet

Cabinet Material: Composite PP, wooden reinforced
Hardware: Rigging flyware
Handles: 2 side, 2 back
Colour: Black

Physical Specifications

Height: 294 / 11.5 mm/inch
Width: 705 / 27.7 mm/inch
Depth: 445 / 17.5 mm/inch
Net Weight: 29 / 63.93 kg/lbs
