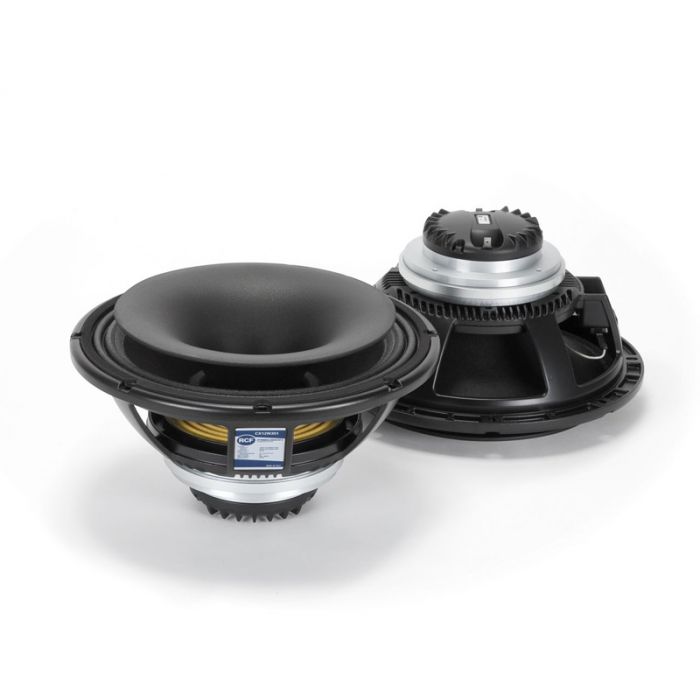

RCF CX12N351

Top class coaxial design that provides an excellent frequency response linearity with very low distortion

12"/1.4” Leistung: 450W/900W + 90W/180W RMS/Prog.) Schalldruck SPL 1W/1m (Woofer/Driver): 98,5/110dB Freq. Range 50-20.000 Hz HF 60° Radial-Horn, coaxial

The CX12N351 is powered from an integrated high power neodymium magnetic structure that guarantee high dynamic and sensitivity for both components.
The mid-bass section features a 3,5" inside-outside voice coil design that provides a very high power handling, especially in comparison to a standard 3" voice coil.
Thanks to an integrated demodulation ring the mid-bass section gets a fastest time response and lower distortion.
The compression driver use a 2.5" diaphragm with a 1.4" throat featuring several state of the art technologies.
The diaphragm and suspension are formed from 0.05 mm thick pure titanium.

Features

* 3.5-inch , fibreglass outside aluminum voice coil
* 900 Watt continuous program power handling
* 98.5 dB Sensitivity
* 50 Hz - 3.0 kHz Frequency range
* Dual-forced air ventilation for minimum power compression
* M-roll surround and exponential cone geometry
* Demodulation ring
* 2.5-inch Diaphragm, 1.4-inch Exit Throat/pure titanium compression driver
* 180 Watt Continuous program power handling
* Frequency range: 700Hz – 20kHz
* Direct Drive Voice Coil Assembly
* 3-slot, optimised geometry phase plug
* Aluminum rear cover
* Copper inductance ring for extended response

CX12N351 Driver

* Nominal Diameter: 35.5 / 1.4 mm/inch
* Rated Impedance: 8 Ω
* Program Power: 180 W
* Power Handling Capacity: 90 W
* Sensitivity 1 W, 1 m: 110 dB
* Frequency Range: 700 - 20000 Hz
* Minimun Impedance: 7.9 Ω
* Voice Coil Diameter: 63.7 / 2.5 mm/inch
* Voice Coil Material: Edgewound Aluminum
* Number of layers: 1 - Outside
* Diaphragm Material: Pure Titanium
* Diaphragm Design: Dome
* Suspension Material: Pure Titanium
* Suspension design: Progressive
* BL factor: 10.4 T · m
* Flux density: 2.0 T
* Phase plug design: 3 slot
* Phase plug material: Aluminium
* Magentics: Neodymium
* Voice Coil Demodulatuon: Copper ring

CX12N351 Horn

* Throat Diameter: 36 / 1.4
* Nominal coverage (-6dB): 60°°
* Cut-off Frequency: 900
* Material: Structural Polyurethane

CX12N351 Woofer

* Nominal Diameter: 300 / 12 mm/inch
* Rated Impedance: 8 Ω
* Program Power: 900 W
* Power Handling Capacity: 450 W
* Sensitivity: 98.5 dB
* Frequency Range: 50 - 3000 Hz
* Effective Piston Diameter: 260 / 10 mm/inch
* Max Excursion Before Damage (peak to peak): 39 / 1.5 mm/inch
* Minimun Impedance: 6.8 Ω
* Voice Coil Diameter: 87 / 3.4 mm/inch
* Voice Coil Material: Copper
* Voice Coil Winding Depth: 16.5 / 0.65 mm/inch
* Number of layers: 2
* Kind of layer: inside / outside
* Top Plate Thickness: 11 / 0.43 mm/inch
* Cone Material: No pressed pulp
* Cone Design: Curved
* Surround Material: Polycotton
* Surround Design: M - roll

Thiele/Small Parameters

* Resonance frequency: Fs - 58 Hz
* DC resistance: Re - 5.8 Ω
* Mechanical Factor: Qms - 5.4
* Electircal Factor: Qes - 0.21
* Total Factor: Qts - 0.20
* BL Factor: Bl - 25 T · m
* Effective Moving Mass: Mms - 62 g
* Equivalent Cas air load: Vas - 47 liters
* Effective piston area: Sd - 0.053 m²
* Max. linear excursion ( mathematical): Xmax - 5.5 mm
* Voice - coil inductance @ 1 kHz: Le1K - 1.5 mH
* Half-space efficiency: Eff - 4.4%

Mounting Information

* Overall Diameter: 320 / 12.6 mm/inch
* Bolt Circle Diameter: 293 - 304 / 11.5 - 12 mm/inch
* Bolt Hole Diameter: 6.5 / 0.3 mm/inch
* Front Mount Baffle Cut-out: 284 / 11.2 mm/inch
* Rear Mount Baffle Cut-out: 284 / 11.2 mm/inch
* Depth: 144 / 5.66 mm/inch
* Volume occupied by the driver: 2.2 / 0.77 liters/ft³

Shipping Information

* Net Weight: 5.9 / 13 kg/lbs
* Shipping Weight: 6.7 / 14.7 kg/lb
