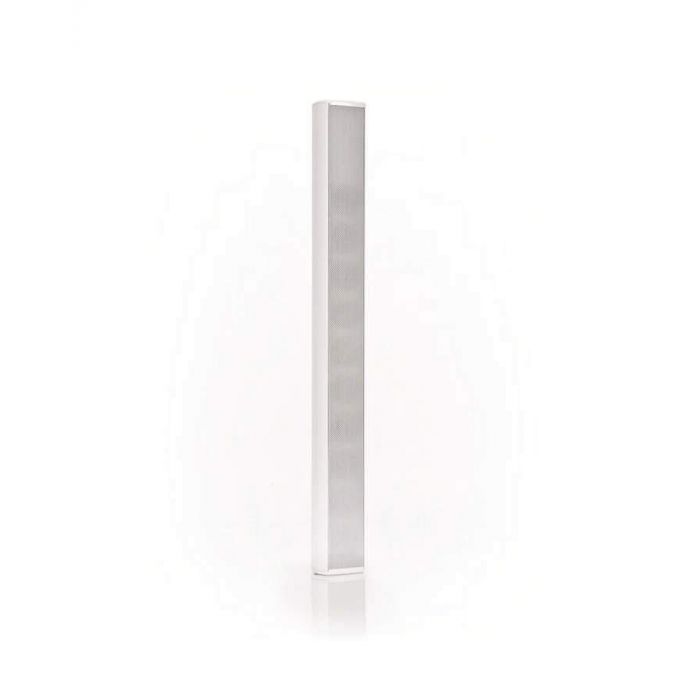

RCF CS 3082

Elegante 2-Wege-Tonsäule in weißem Aluminiumgehäuse mit Metallfrontgitter sowie eingebautem 70/100V Übertrager, 8 x 2“ (50) mm Breitbandlautsprecher und 2 x 1“ (25mm) Tweeter.

Sie ist speziell entzerrt für optimales Abstrahlverhalten und ideal für Sprache geeignet. Die Lieferung erfolgt inkl. Halterung.

Technische Daten:

Nenn-/Musikbelastbarkeit: 30/60 W
Übertrager: [100 V] 30 – 20 – 10 W
Lautsprecher: 8 x 2“, 2 x 1“
Impedanz: 8 Ohm (schaltbar)
Übertragungsbereich: 200 – 20.000Hz
Empfindlichkeit: (1W/1m) 91 dB
Maximaler Schalldruck: 106 dB
Abstrahlwinkel (HxV): 180° x 30°
Abmessungen (BxHxT): 78 x 670 x 66mm
Gewicht: 2,8 kg
Farbe: weiß RAL9016
Optionales Zubehör: MA7W Kugelgelenkhalterung

CS 3082 is formed in an ultra slimline design offering minimal visual impact.

Easy installation can be achieved with either the supplied ‘L’ shaped wall brackets or the optional MA 7W swivel bracket, which allows the installer to angle the speaker to suit.
The new CS Slimline Columns have been optimised for speech reproduction using extended range 2 inch speakers and 1 inch tweeters.

Features

Ideal for speech reproduction, shape designed to enable corner installation
Music power/RMS: 60/30W
Eight 50 mm (2") diameter extended range speakers and two tweeter 25 mm (1")
Body in extruded aluminium bake-painted RAL 9016 White and front metal grille RAL 9016 White, includes accessory for wall mounting
Built-in multi-tapped transformer (30 - 20 - 10 W) for 100 V constant voltage connection
16-ohm input that can be selected on the terminal block
Audio connection on screw terminal block

Acoustical Specifications

Type of speaker: Column
Frequency Response: 180 Hz ÷ 20 kHz
Max SPL @ 1m: 111 dB
Horizontal coverage angle: 180°
Vertical coverage angle: 30°
Power Handling: 30 W RMS
Peak Power Handling: 60 W PEAK
System Sensitivity: 90 dB
Impedance: 16 Ω

Transducers

Speaker: 8 x 2"
Tweeter: 2 x 1"

Input Section

Constant voltage: 100 V / 70 V V
Power Selection: 30 - 20 - 10 (100 V)

Cabinet

Hardware: Body in aluminium
Colour: RAL 9016
Grille: Metal

Physical Specifications

Height: 670 / 26.37 mm/inch
Width: 76 / 2.99 mm/inch
Depth: 65 / 2.55 mm/inch
Net weight: 2.7 / 5.95 kg/lbs
