RCF CD 400
Verfügbarkeit unbekannt
Exit:1" 50W rms, 100W program. 109 dB, 1200-20KHz -Mylar

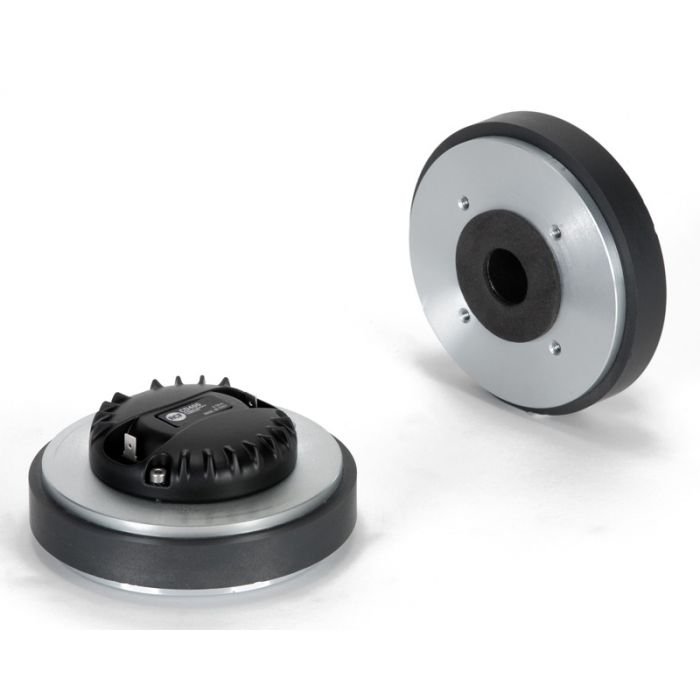

The CD400 is a high performance 1.75-inch diaphragm ceramic compression driver with a 1.0 inch exit throat.
The diaphragm is precision formed from polyester. The voice coil assembly is designed using high temperature Kapton former, rectangular profile copper clad aluminum wire and assembled using advanced, specially formulated adhesives.
Features:
- 1.75-inch Diaphragm, 1.0-inch Exit Throat / Polyester Compression Driver
- 100W continuous program power handling
- Frequency range: 1200Hz - 20kHz
- 2-slot optimized geometry phase plug
- Polyester diaphragm
- Vented suspension system
- Ceramic magnet assembly
Applications
• Perfect driver for professional high performance applications
• Compact 2-way systems, multiple-way systems
• Flexible and easy to crossover, offer high efficiency combined to a very high frequency extension.
• Very good in combination with RCF HF94, HF64, H100, HF101 horns
| Marke | RCF |
|---|
