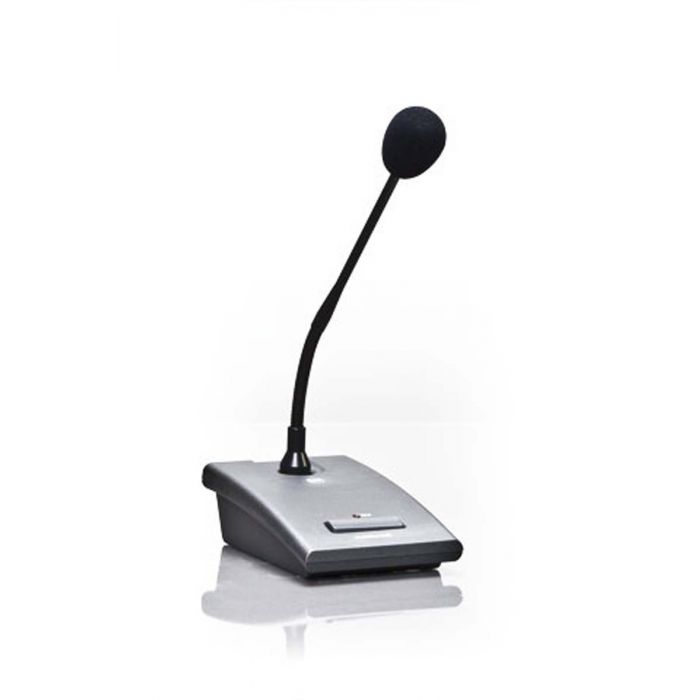

RCF BM 3022

Gooseneck microphone with hi-quality unidirectional electret capsule
Direct connection to power amplifiers input through CAT5 cable
Adjustable line output with RJ45 connector
Switchable automatic gain control (AGC)
Up to 30 BM 3022 paging microphones can be linked in a ‘daisy-chain’
Selectable mixing, interlocking or priority mode among devices
When activating a microphone, the announcement can be preceded by a chime.


General Specifications

Type: Tischsprechstelle mit Eelektret Kondensator Schwanenhalsmikrofon
Directivity: Niere
Frequency Response: 200 Hz ÷ 7 kHz
Microphone Sensitivity: - 65
Connector: 8-poliger RJ 45

Power Requirements

Power (consumption): 2.8 mA

Physical Specifications

Height: 350 / 13.78 mm/inch
Width: 100 / 3.94 mm/inch
Depth: 159 / 6.26 mm/inch
Net Weight: 0.7 / 1.54321 kg/lbs

Shipping information

Package height: 70 / 2.75 mm/inch
Package width: 125 / 4.92 mm/inch
Package depth: 242 / 9.52 mm/inch
Shipping weight: 0.8 / 1.76 kg/lbs
